2023 RawMaxx 102" x 32' Gooseneck  - Rawmaxx1

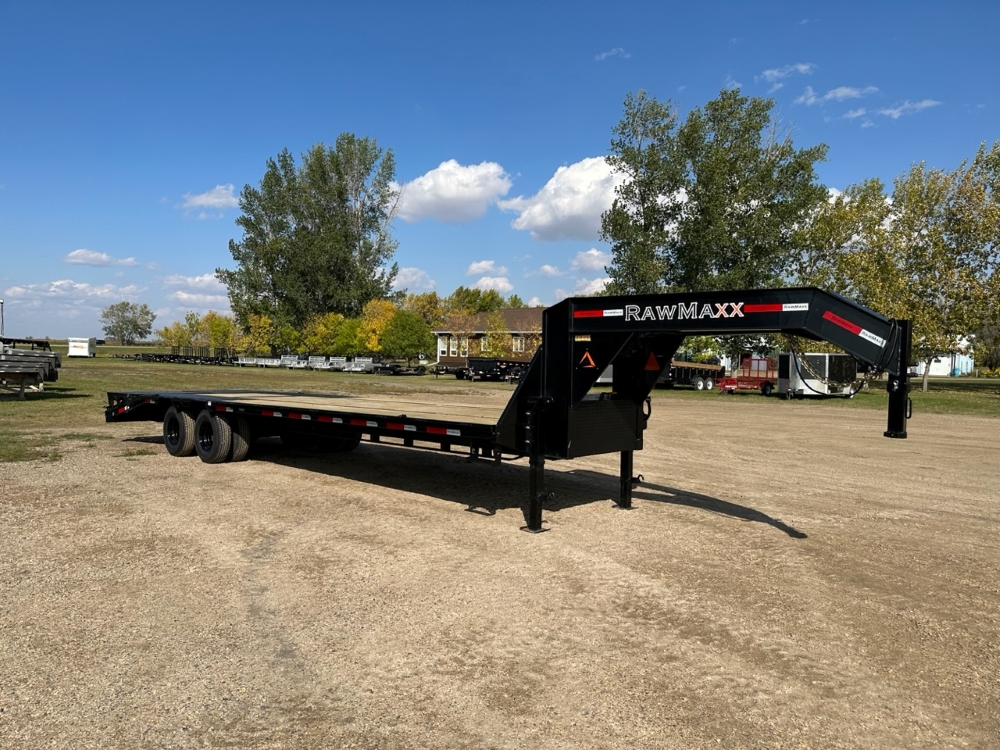

2023 RawMaxx FDX Dual 102" x 32' Gooseneck Trailer

• (2) 10,000 # Axles
• Electric Brakes
• 24,000# GVWR
• 7958# Curb Weight
• 16,042# Payload Capacity
• 35” Deck Height
• 2-5/16” Ball Coupler
• (2) 10,000# Rated Side Wind Drop Leg Jacks

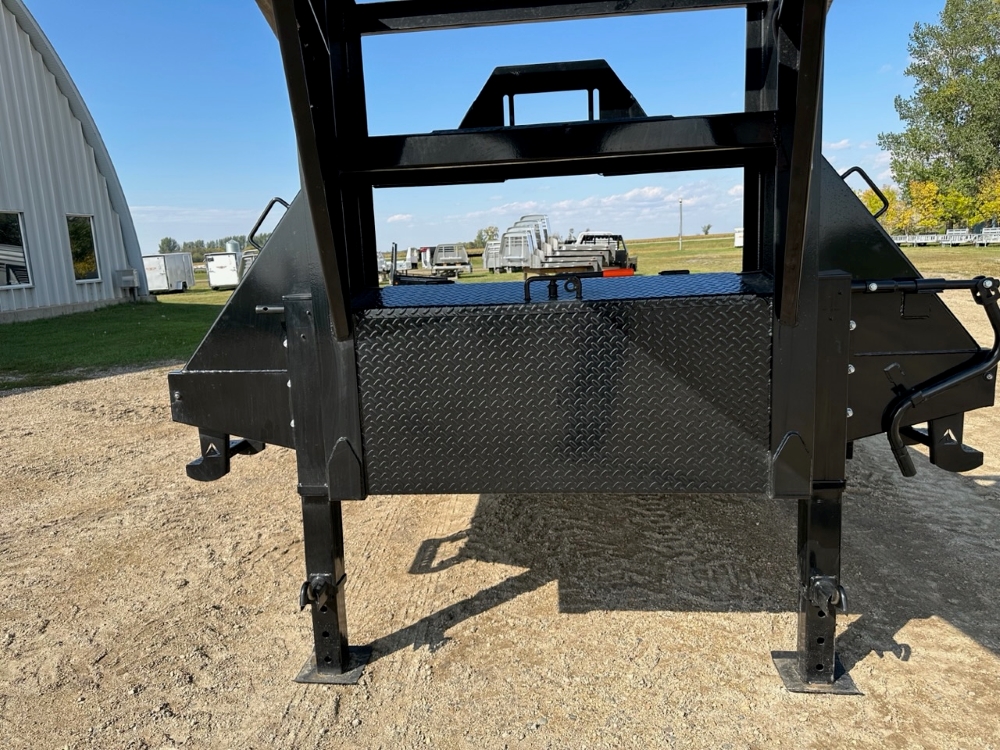

• Front Tool Box Between Risers with Lockable Latch
• 96" Neck Length
• 3/8" G70 Safety Chains
• Electric Breakaway Kit
• 3M DOT Compliant Reflective Tape

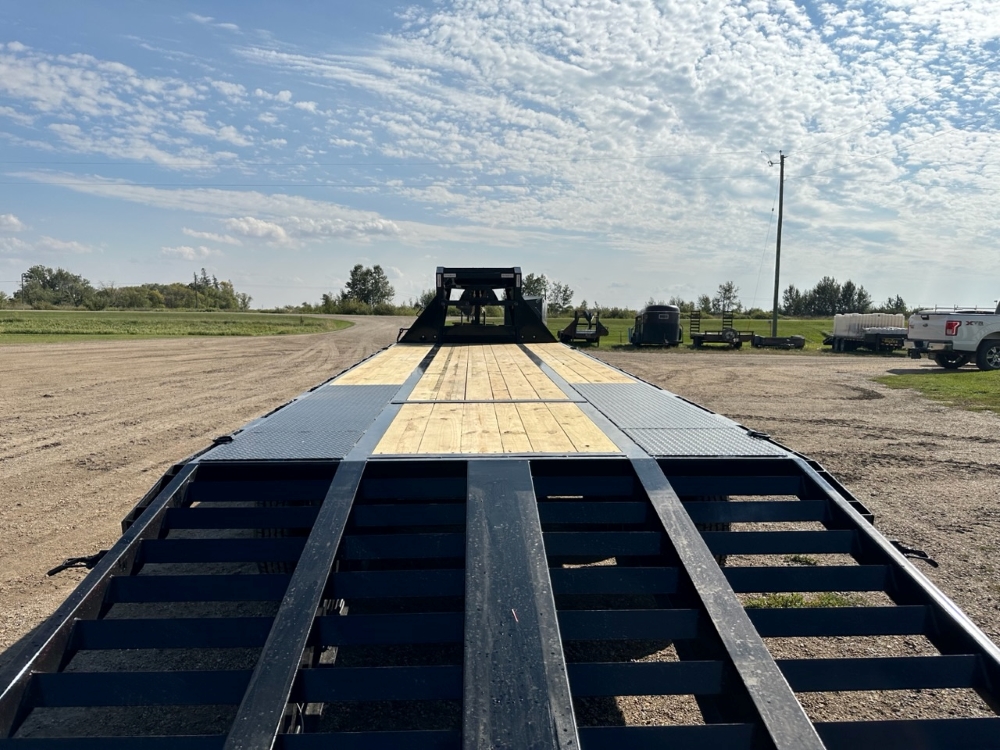

• 2” Treated Lumber Deck
• (4) D-Rings (Welded Outside Perimeter)
• Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame
• 3-5/8" x 1-1/2" (ID) Stake Pockets
• 3/16” Treadplate Fenders
• 12" x 19 lbs. I-Beam Main Frame
• 3" Channel / 16" Spacing Cross Members
• 5” Round Tube Torque Tube
• Bridge Frame: 2" x 4" Square Tube / 4 x 3/8" Flat Bar

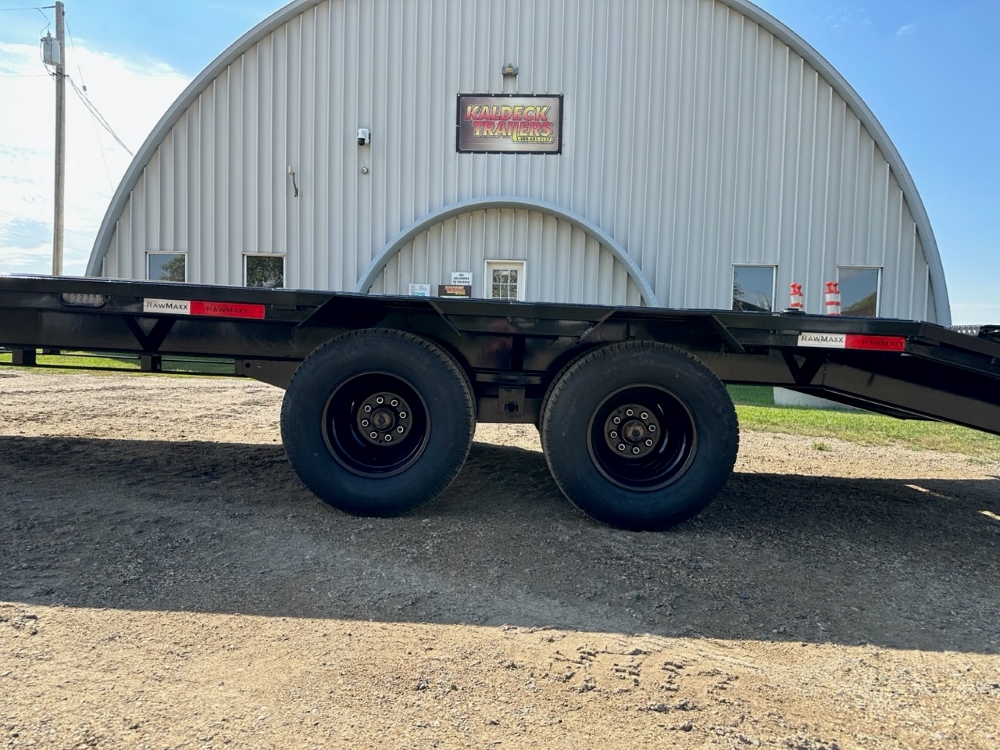

• ST235/80R16 10 Ply Radial Tires
• 16” Dual Black Mod Wheels
• 7 - Way Plug
• All Weather Wiring Harness
• 3/4" LED Bullet Light Side Markers
• 2" x 6" Amber Side Turn Lights
• DOT Approved LED Lights
• Grit Blasted & Powder Coated

3 Year Structural Warranty

1 Year Paint Warranty
