2025  EBY  Trans Pork  Livestock Semi Trailer - Transpork

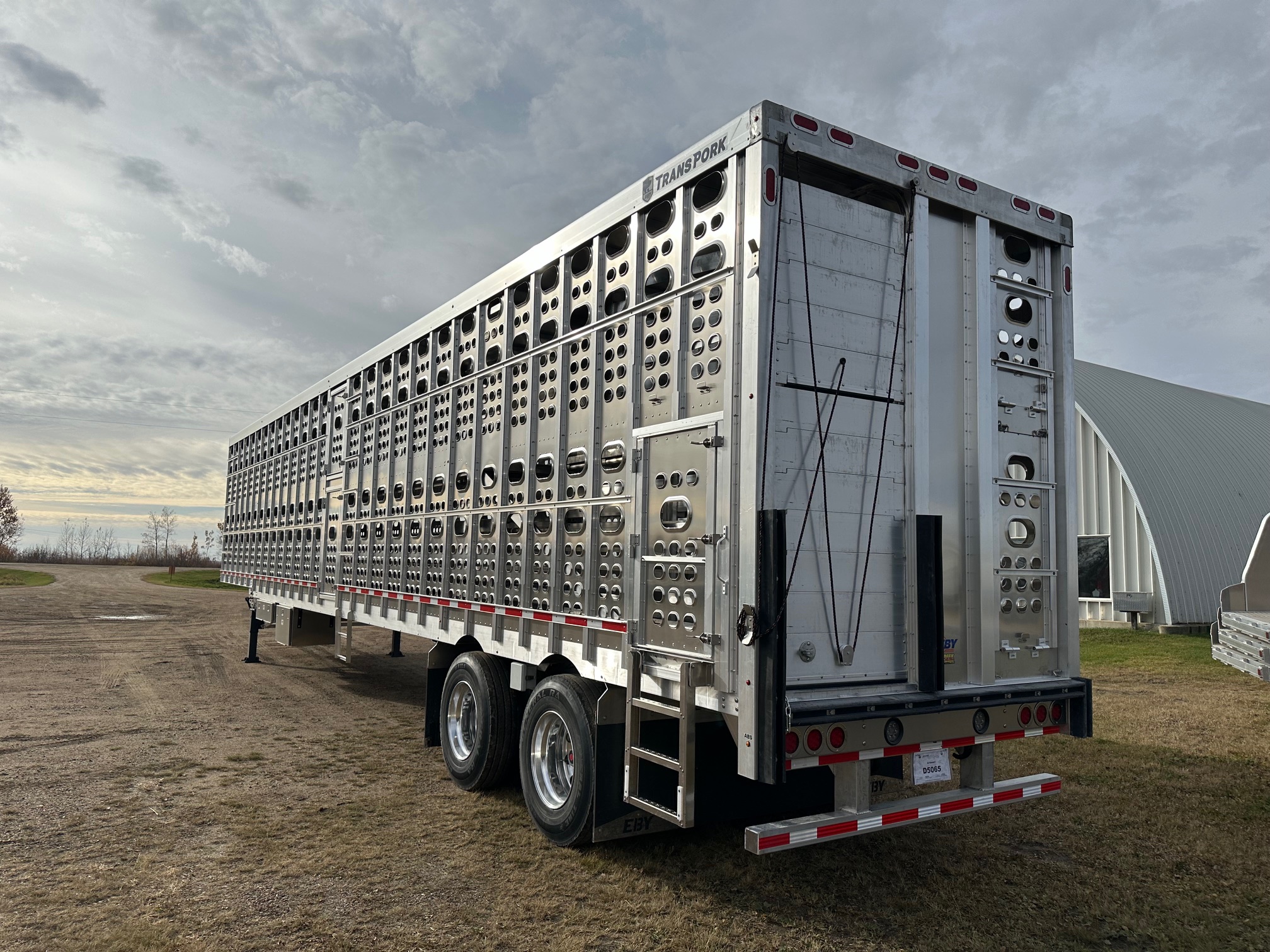

2025 EBY Trans Pork Livestock Semi Trailer

• 102" Width
• 13'6" Height
• 66,000# GVWR
• 13,332# Curb Weight
• 49" King Pin Height
• Powder Coated King Pin
• 36" King Pin Setting Depth
• Deep Axle Tuck
• Hendrickson Intraax Air Ride Suspension
• Cast Drum Brakes
• Ductile Iron Hubs
• 2/S1M Brake Control
• Standard Service (Oil Bath) Wheel End Package
• Aluminum Crank Style Landing Legs
• (2) Dust Shields
• Steel Air Tank
• Dump Valve with Pressure Gauge - Mounted in Weather-Tight Box

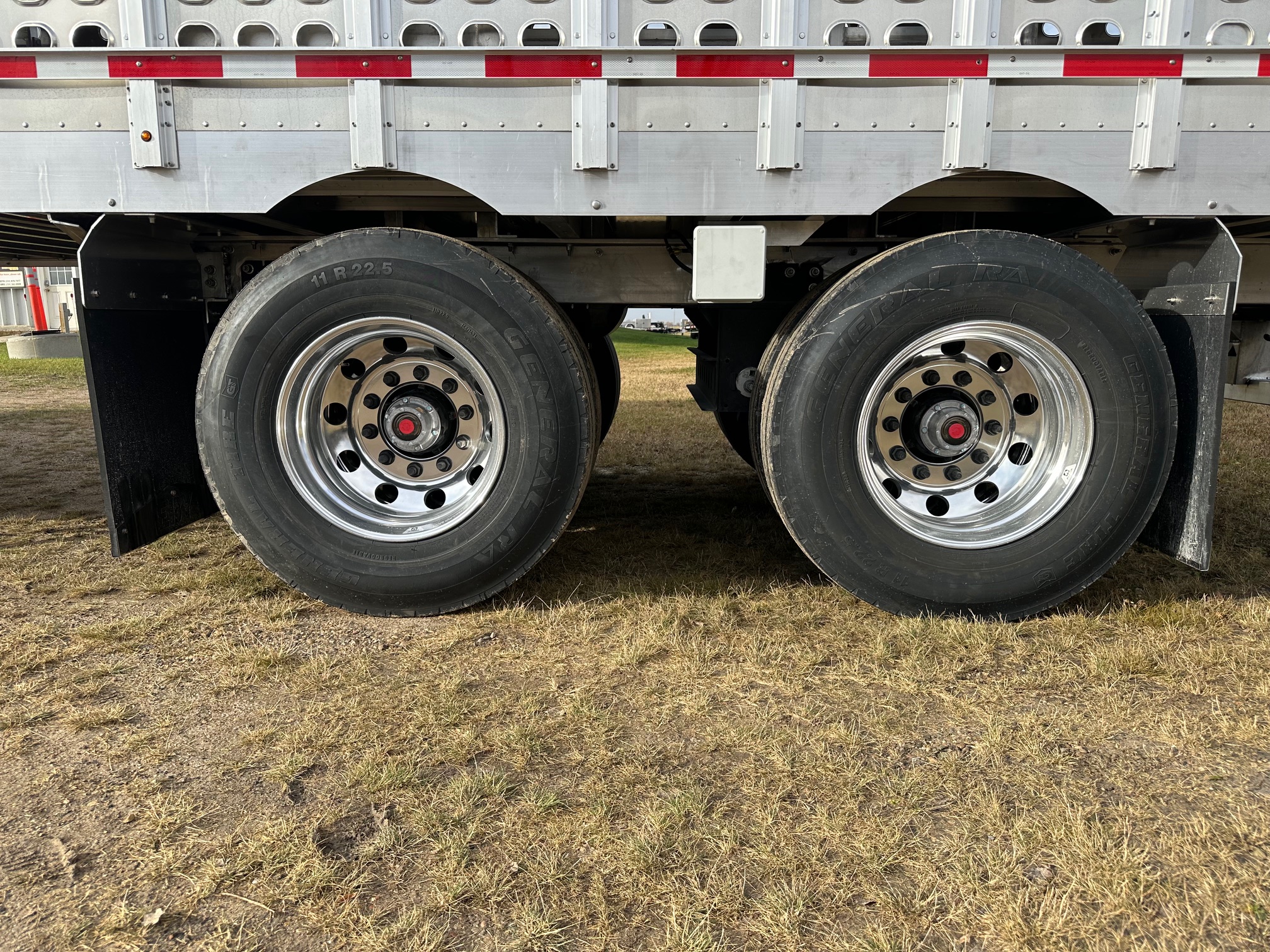

• 22.5" Wheel Size
• Alcoa LVL One Inside Wheels
• Alcoa Durabrite Outer Wheels
• General RA 11R22.5 Tires
• Mill Finished Aluminum Side Panels
• Punch Pattern

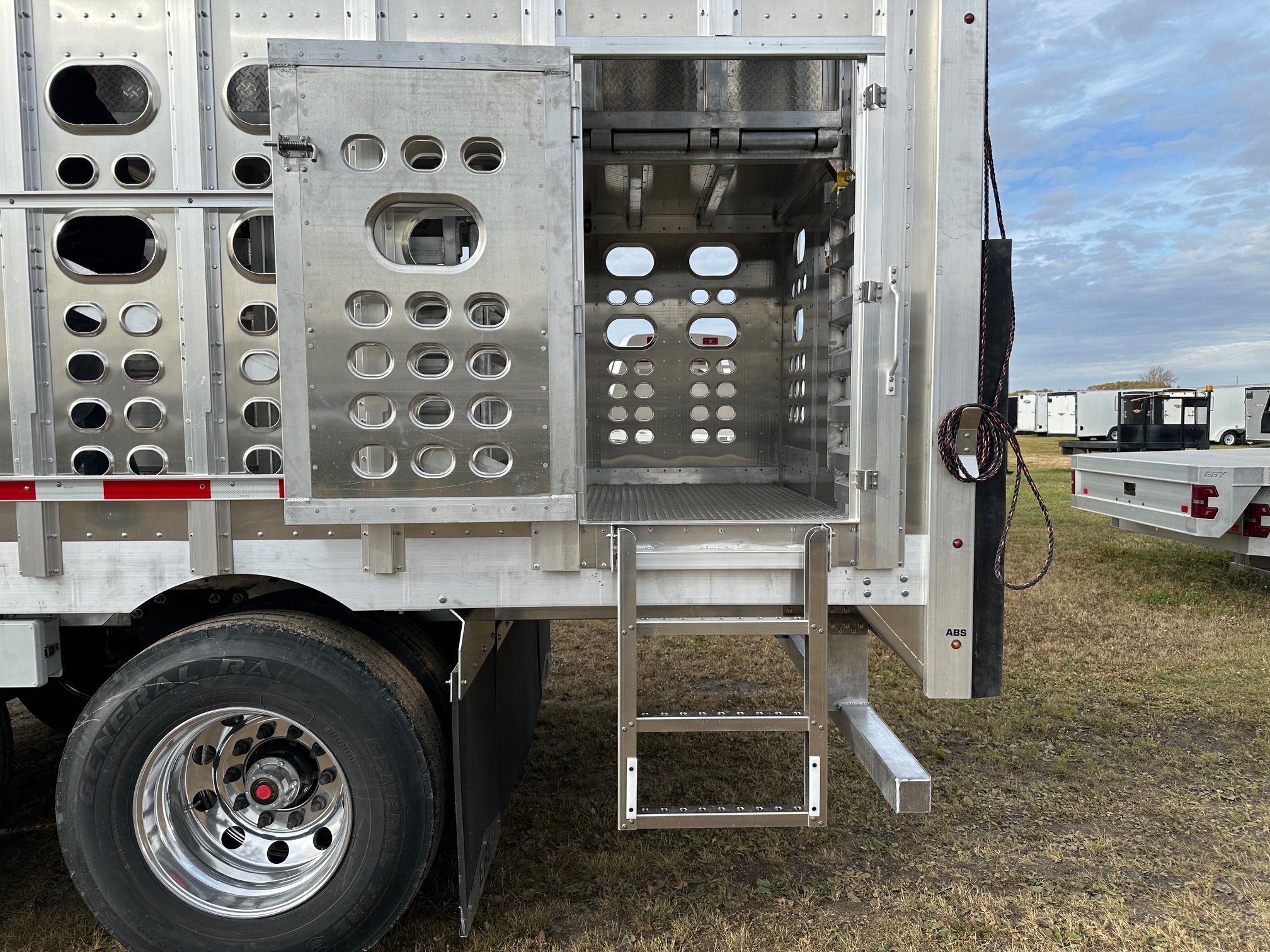

• Drivers Side Escape Door at Bottom-Rear of Deck

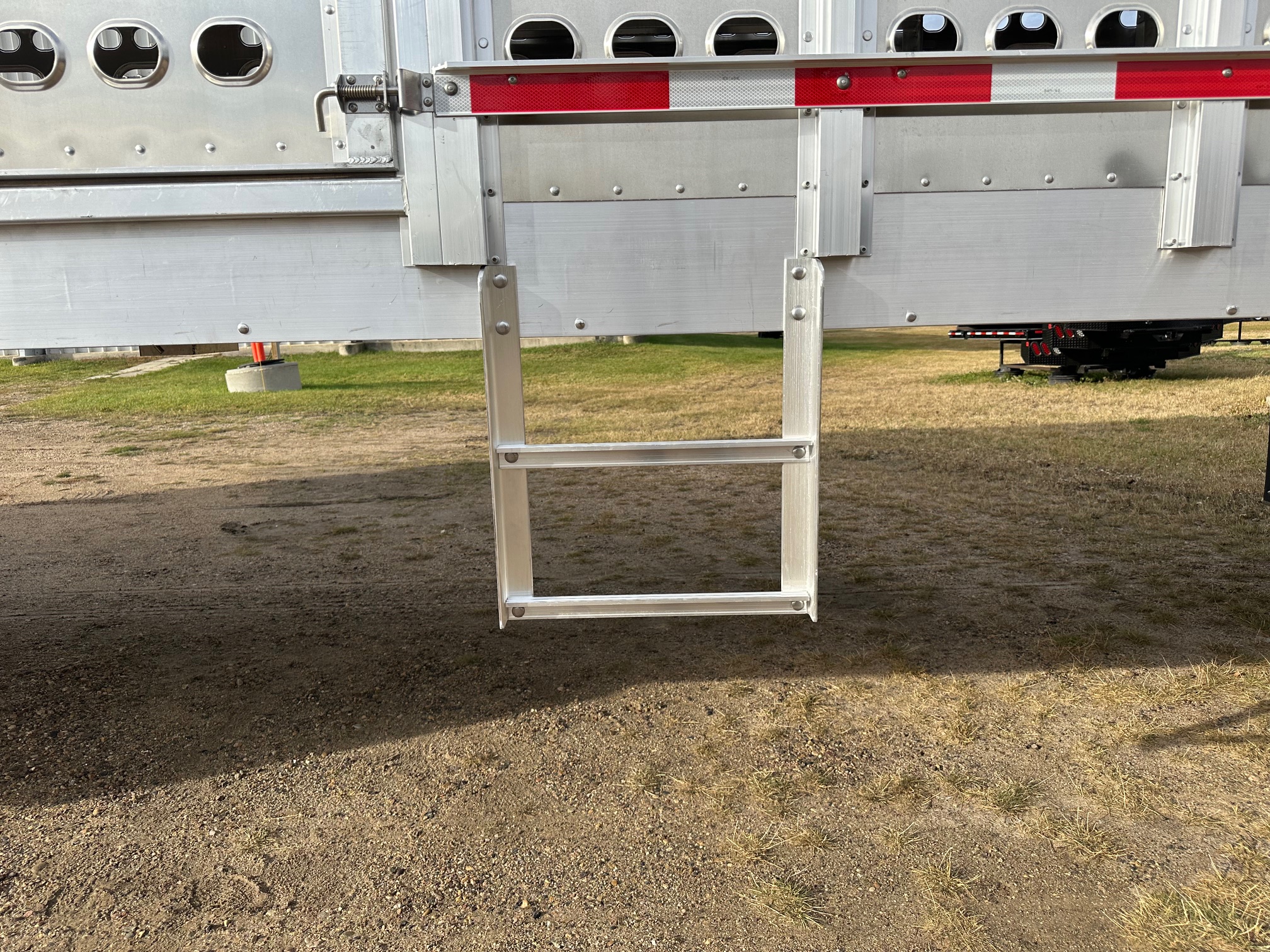

• Fold-Down Ladder - Rear Side Door
• (2) 28-1/2" Wide Center Doors
• Notched & Clipped Retainers for Vertical Closures
• Side Door Closure Plugs
• Grey Closure Panel Finish
• Black Closure Plug Colour

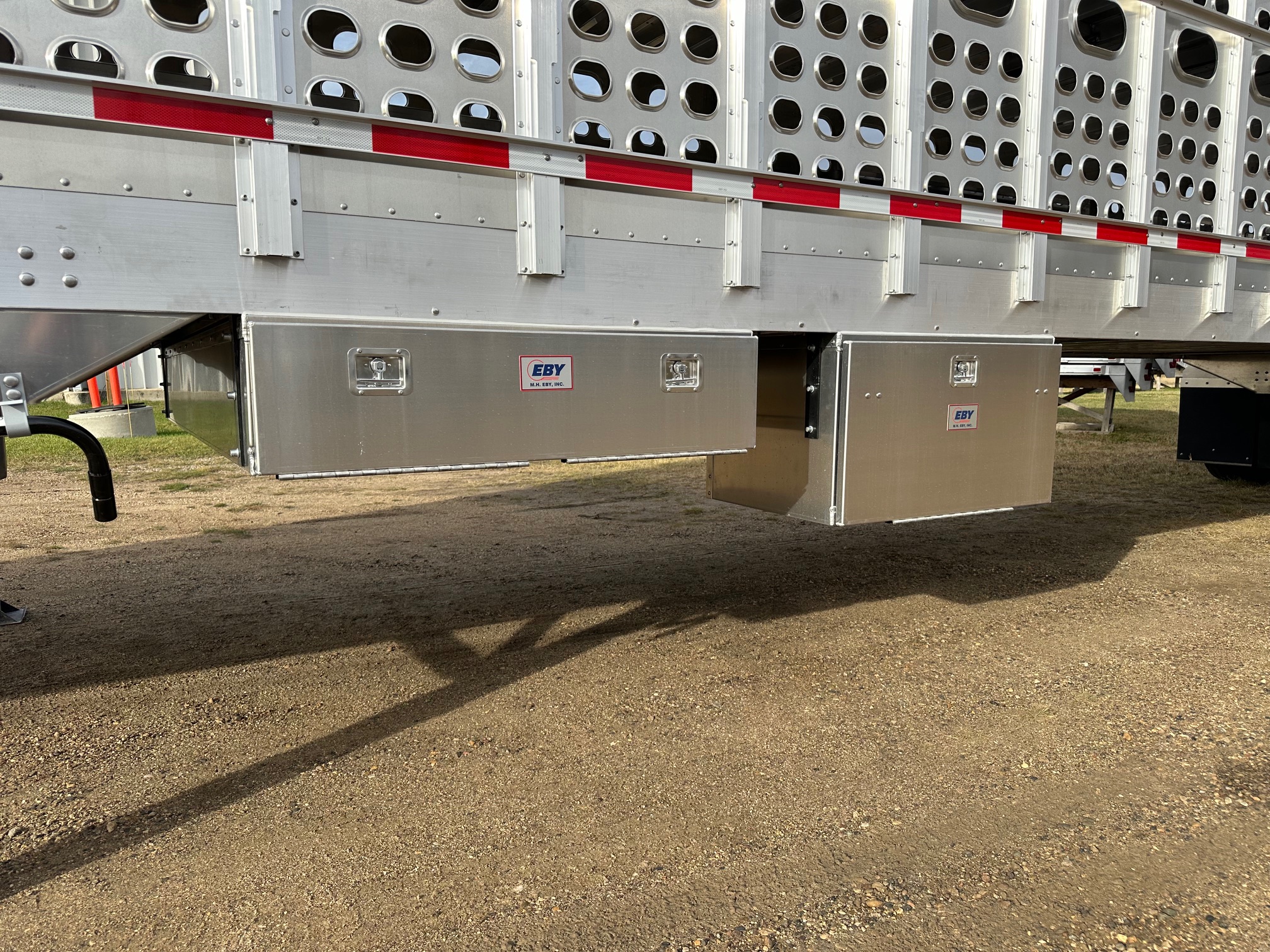

• 48" x 12" Mill Finished Closure Storage Box Behind Landing Gear
• Milled Aluminum Roof Sheet
• Milled Aluminum Front End Panels
• Flat Aluminum Diamond Plate Nose Floor

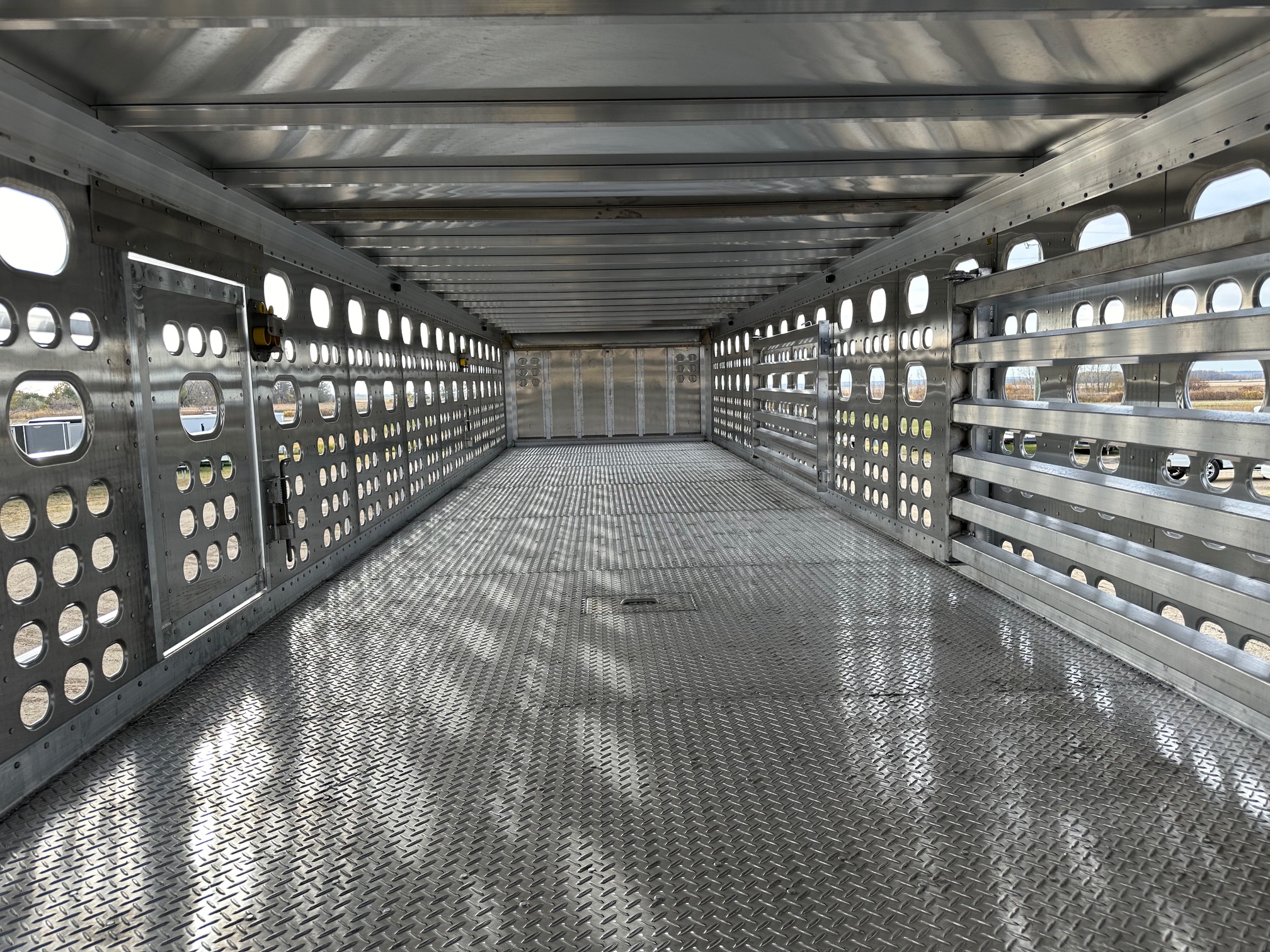

• Flat Aluminum Diamond Plate Center Compartment Floor

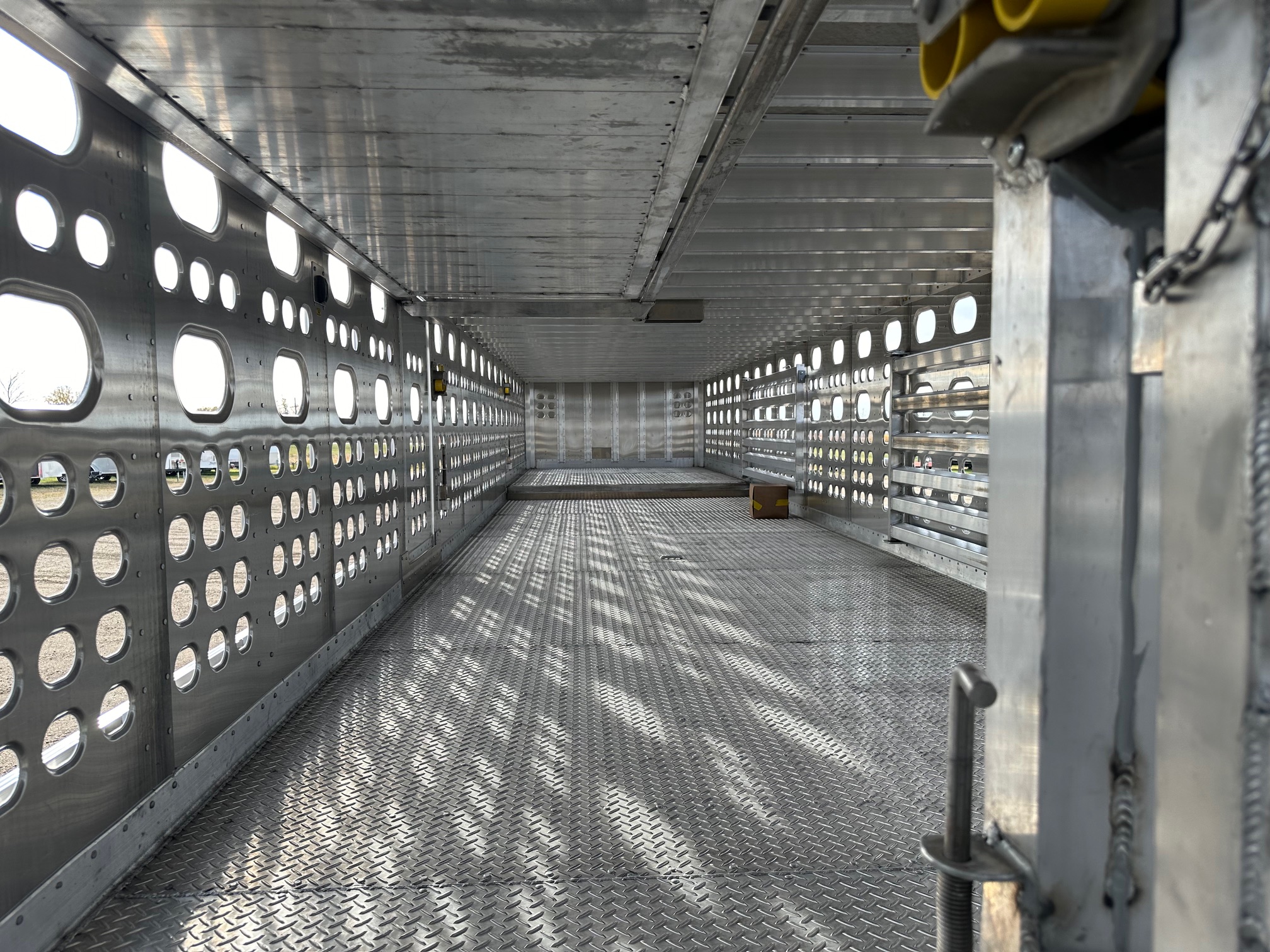

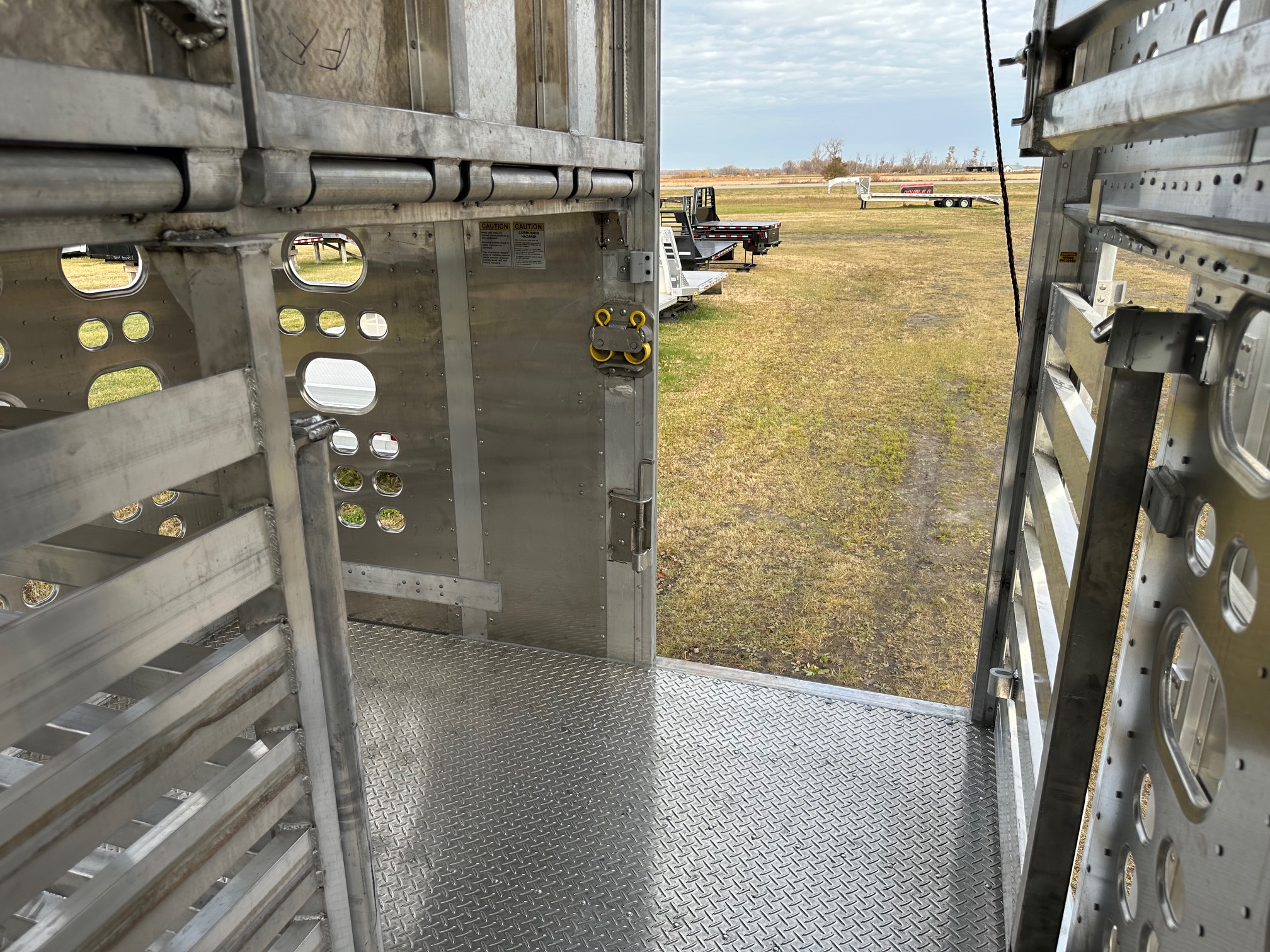

• Flat Aluminum Diamond Plate Rear Compartment Floor

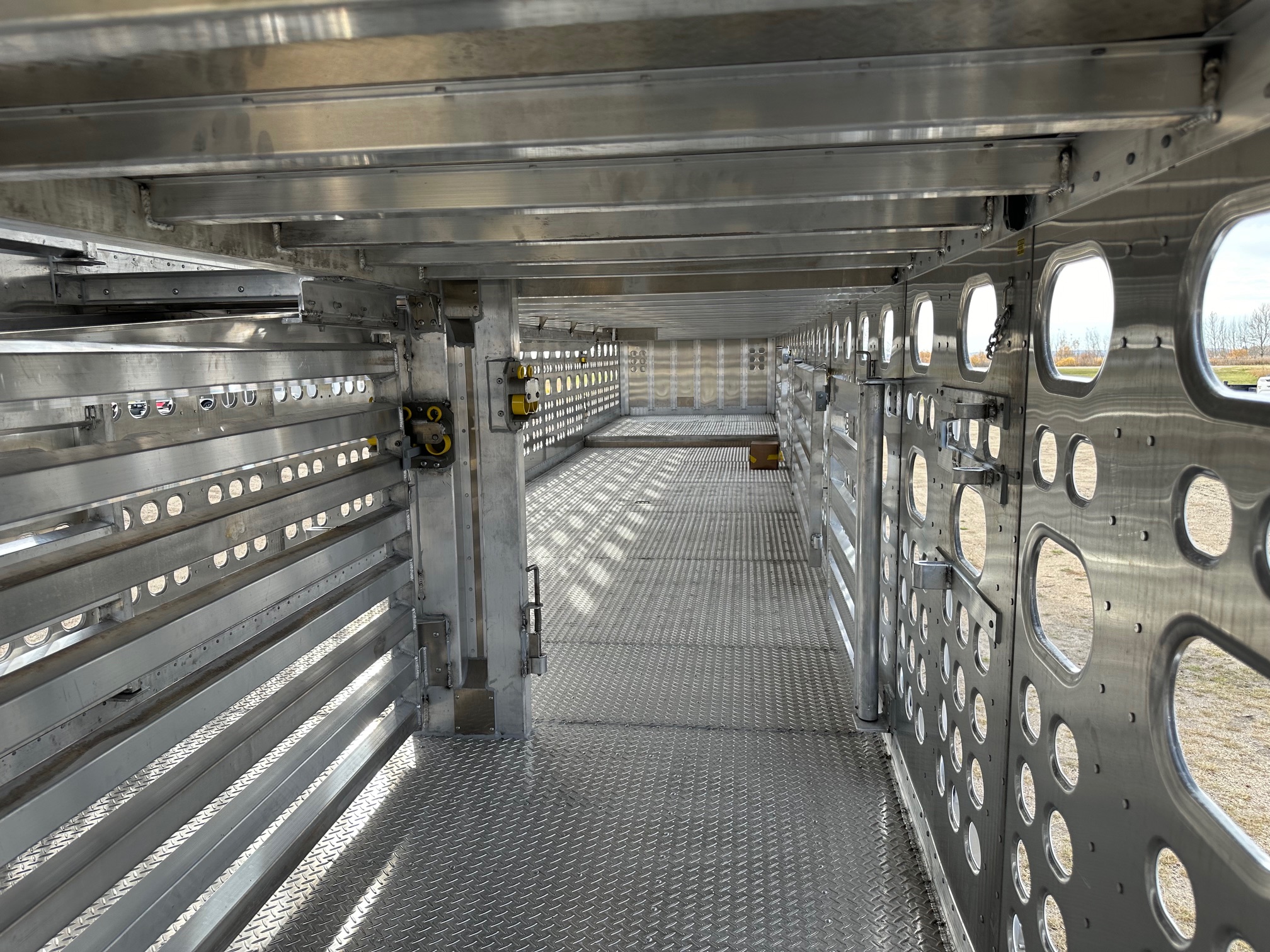

• Flat Aluminum Diamond Plate Jail Floor
• Custom Floor Drains
• (4) Punched Vents with Hinged Covers (Milled Aluminum Front End Vent Finish)
• Aluminum Box Lighted Sign
• (2) Gates on Both Top & Bottom to Make (4) Compartments on Both Top & Bottom
• Western Style Latch
• Spring Loaded Pin on Deck Gate
• 4" Off Floor Deck Gate Setting
• 6' Front Swing with 4' Gates in Rear (Chute Side)
• Custom Rear Extruded Aluminum Ramp Options
• Light Weight Ramp Humps
• 12'11-1/4" Rear Compartment Length

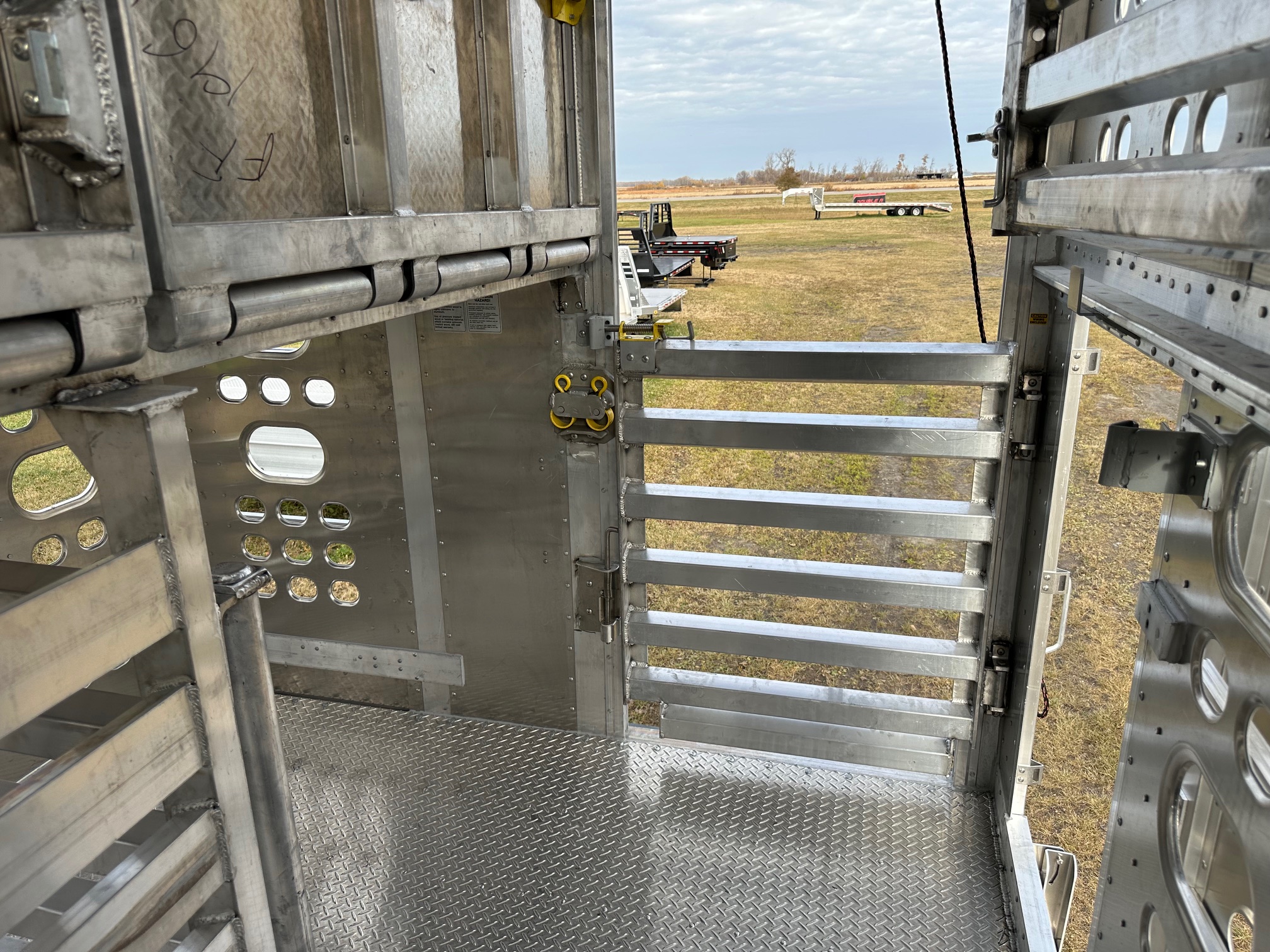

• Safety Gate on Bottom Deck Only
• 54 - 1/8TH" Jail House Setting - Below
• 54 - 1/8" Jail House Setting - Above
• 1/2 Folding Jail, Includes Split Floors and Wind Gate
• Top Funnel Gate, Stores Forward, Folds Towards Rear Partition

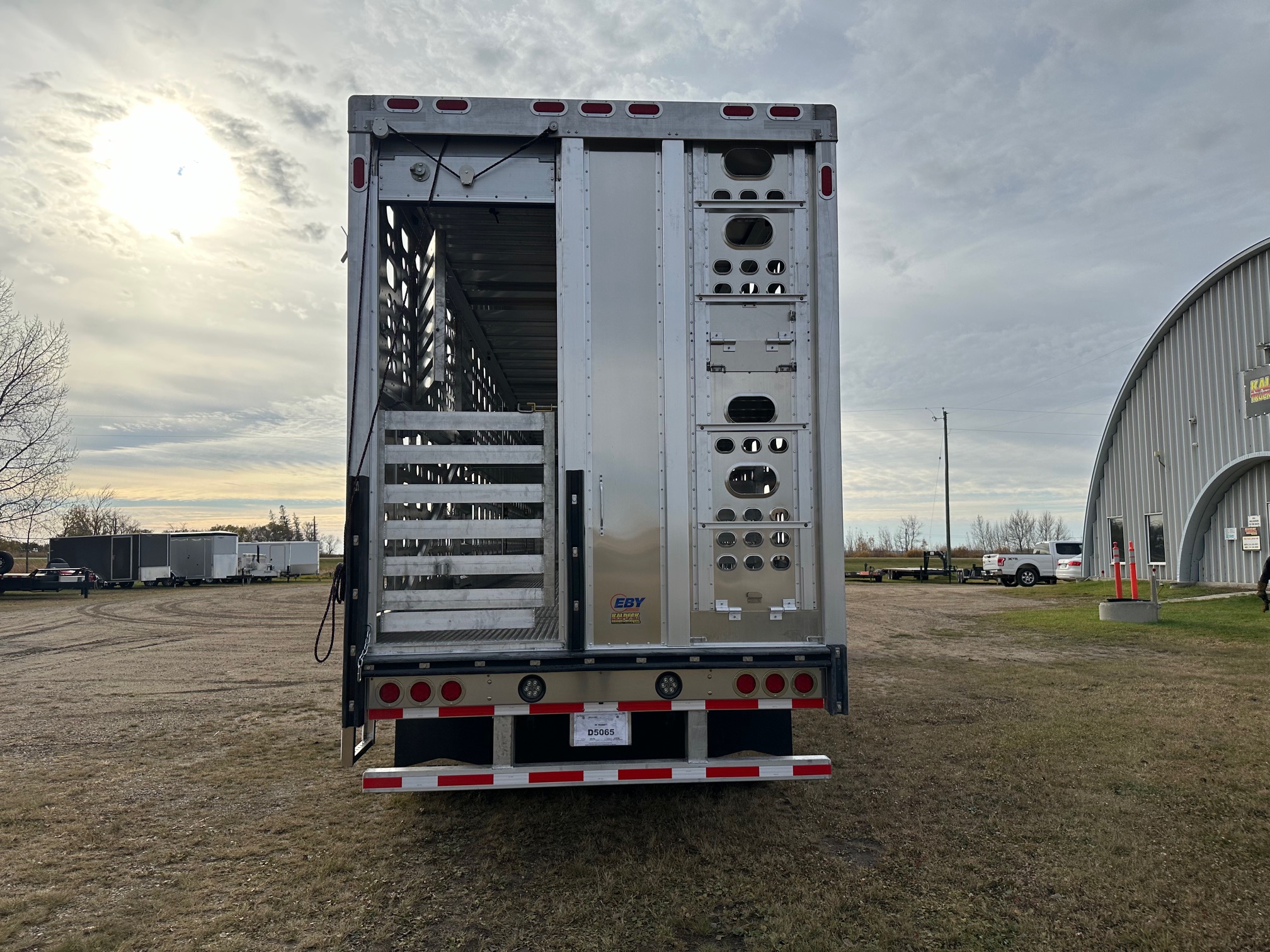

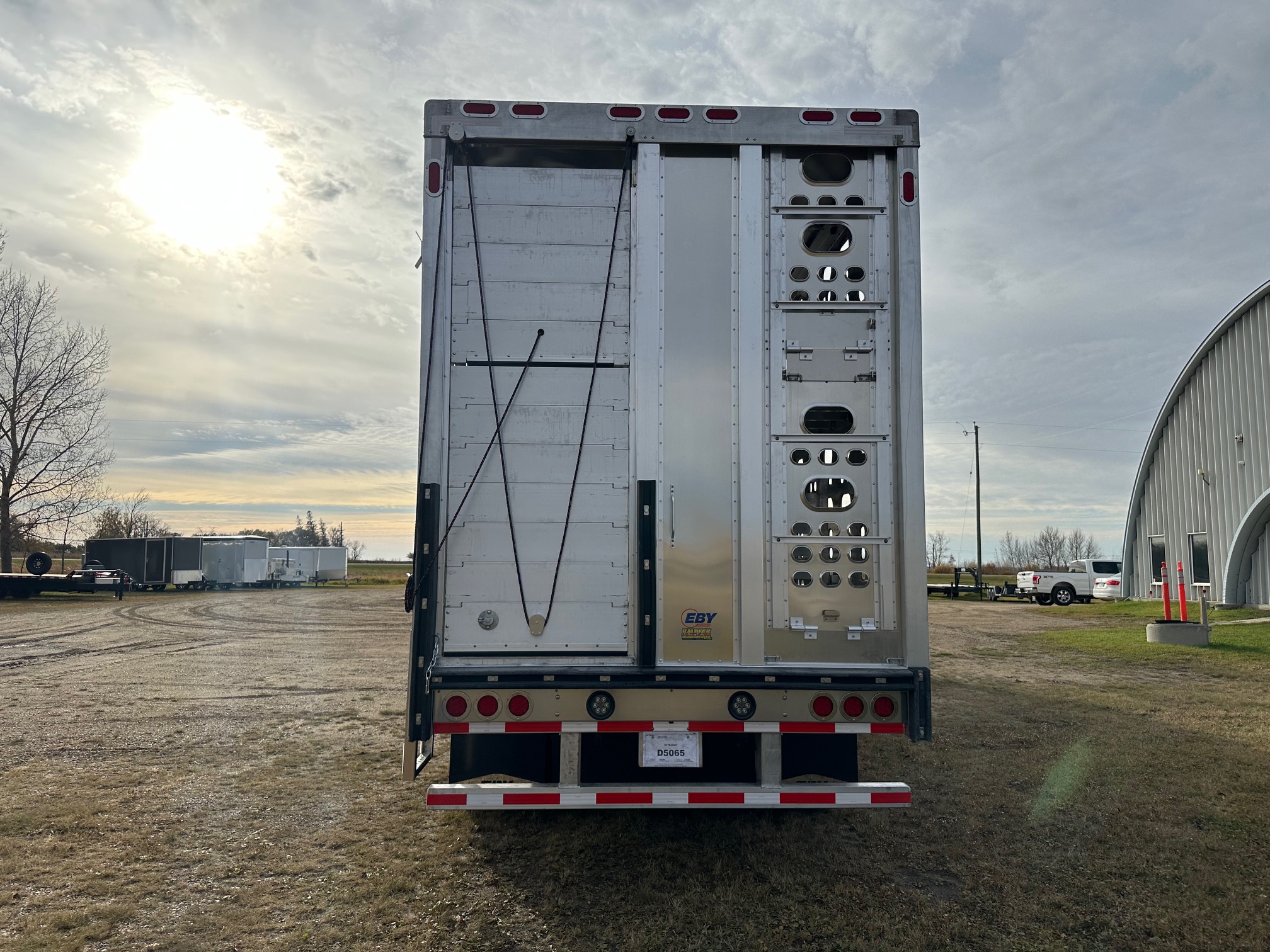

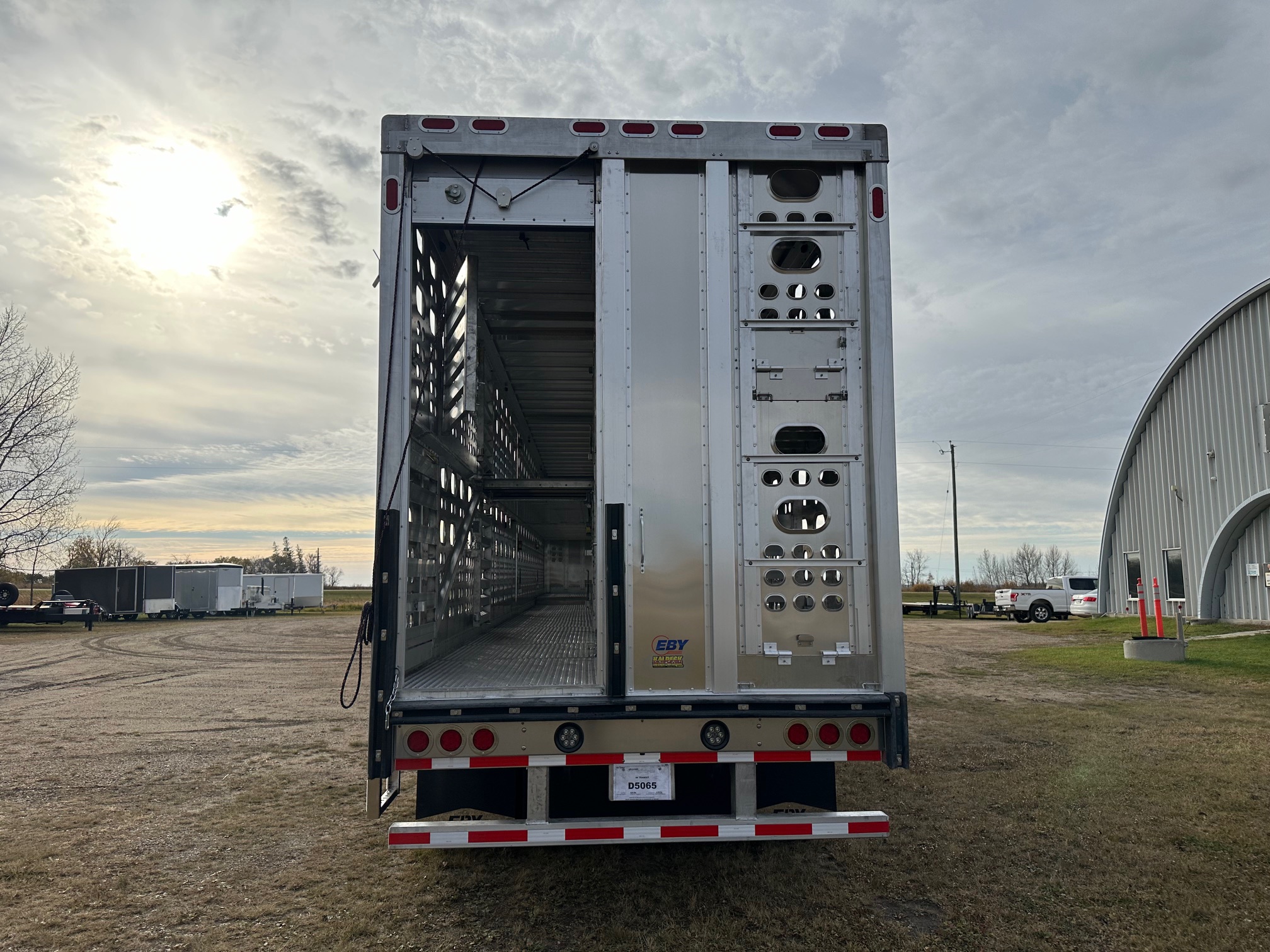

• 36" Premium Roll-Up Door

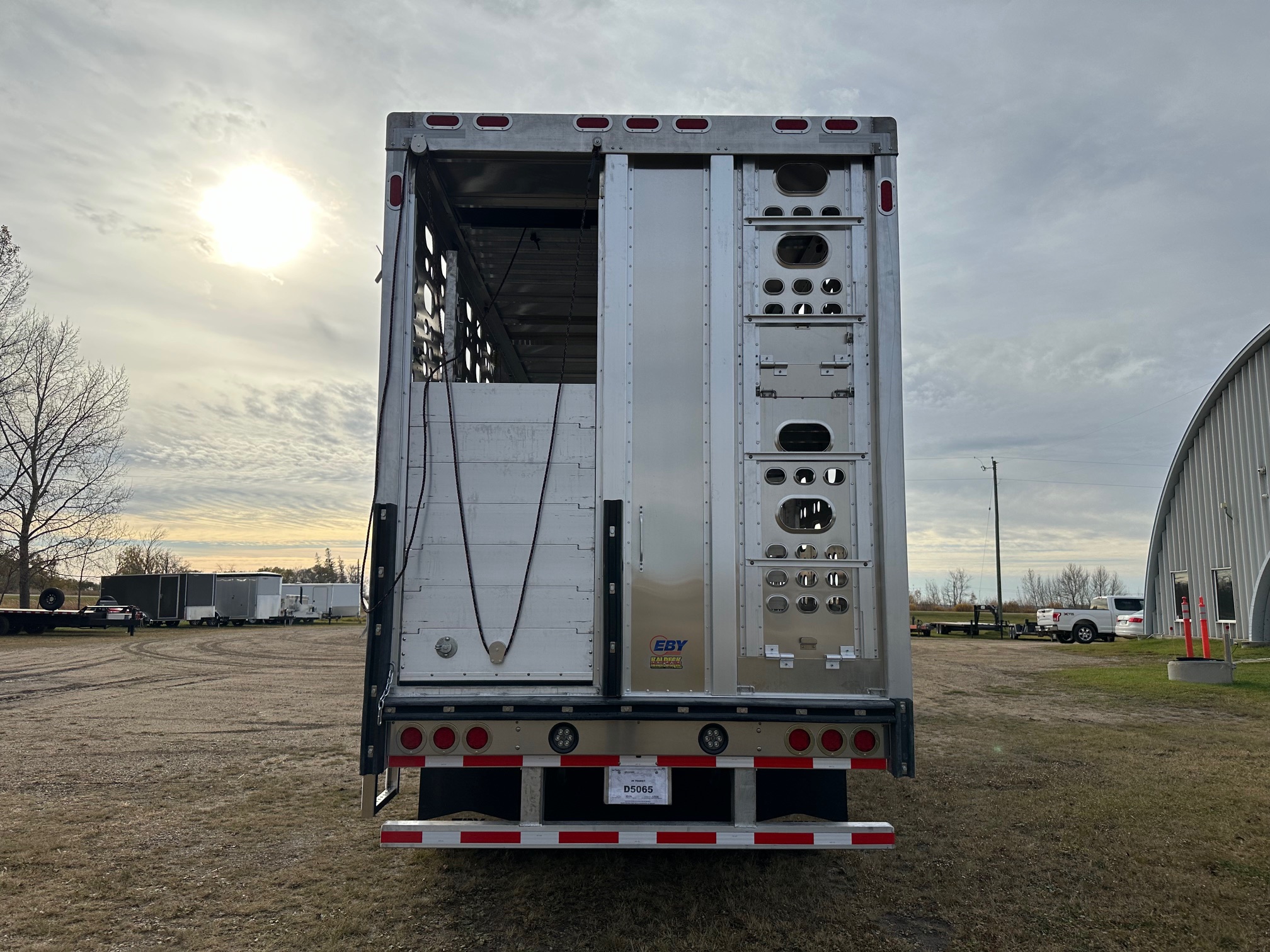

• Split Rear Door Option
• (1) Top & (1) Bottom Door Pulley Options
• Rear Impact Guard Rear Step Bumper
• (2) Tow Hooks
• (2) 13" x 3" Bumpers on Corners
• (2) 36" Tall Bumpers on Either Side of Rear Door
• Full Width 4" Horizontal Bumper
• Peterson Colored Lens Lights
• 2 Inside Lights Per Compartment
• 18 Inside Lights
• (2) Sets of 3/4" Mud Flaps with Stainless Steel Weights
• Canadian Tandem 60" Spread
• Third Row of 5 Lights

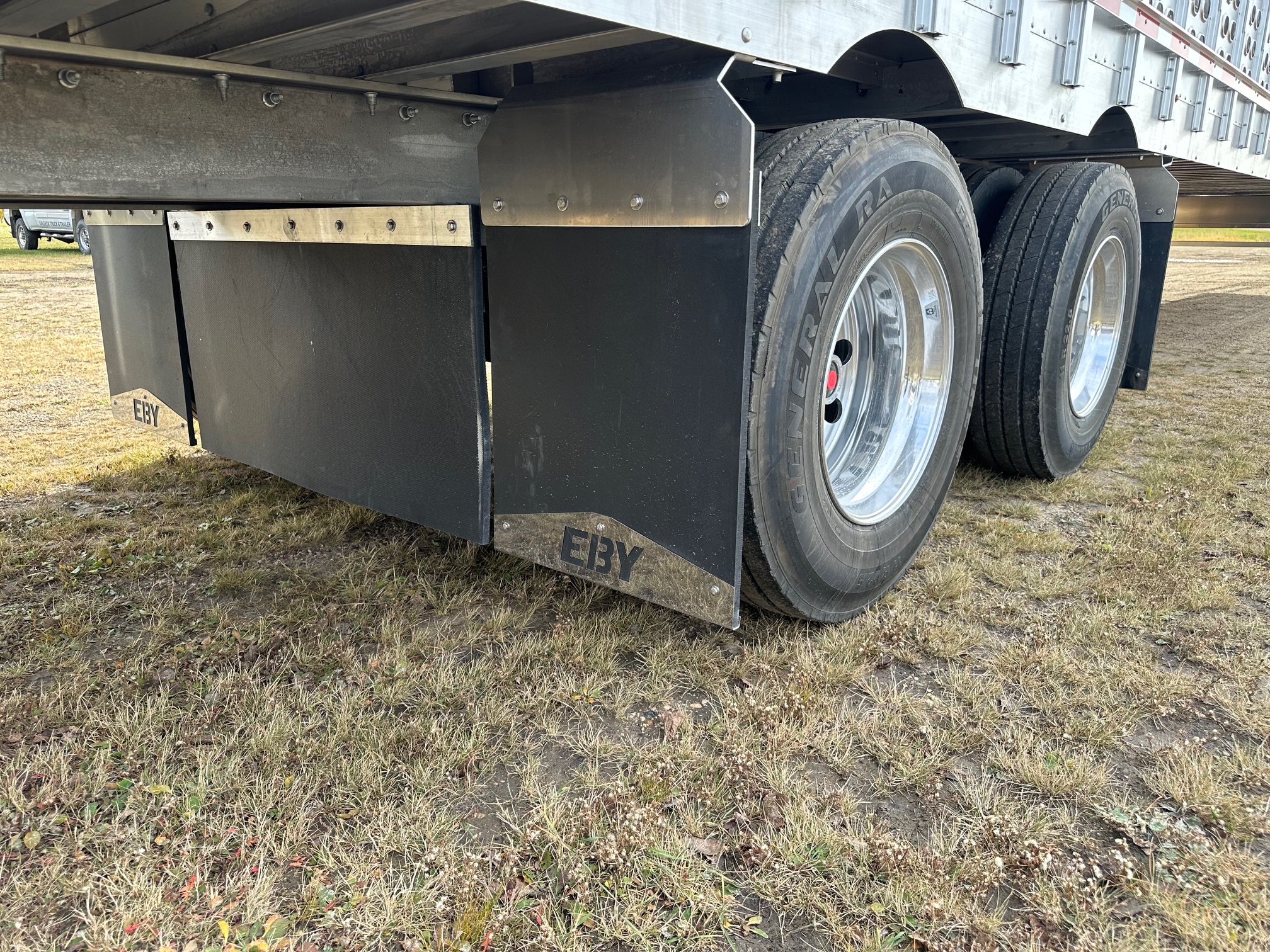

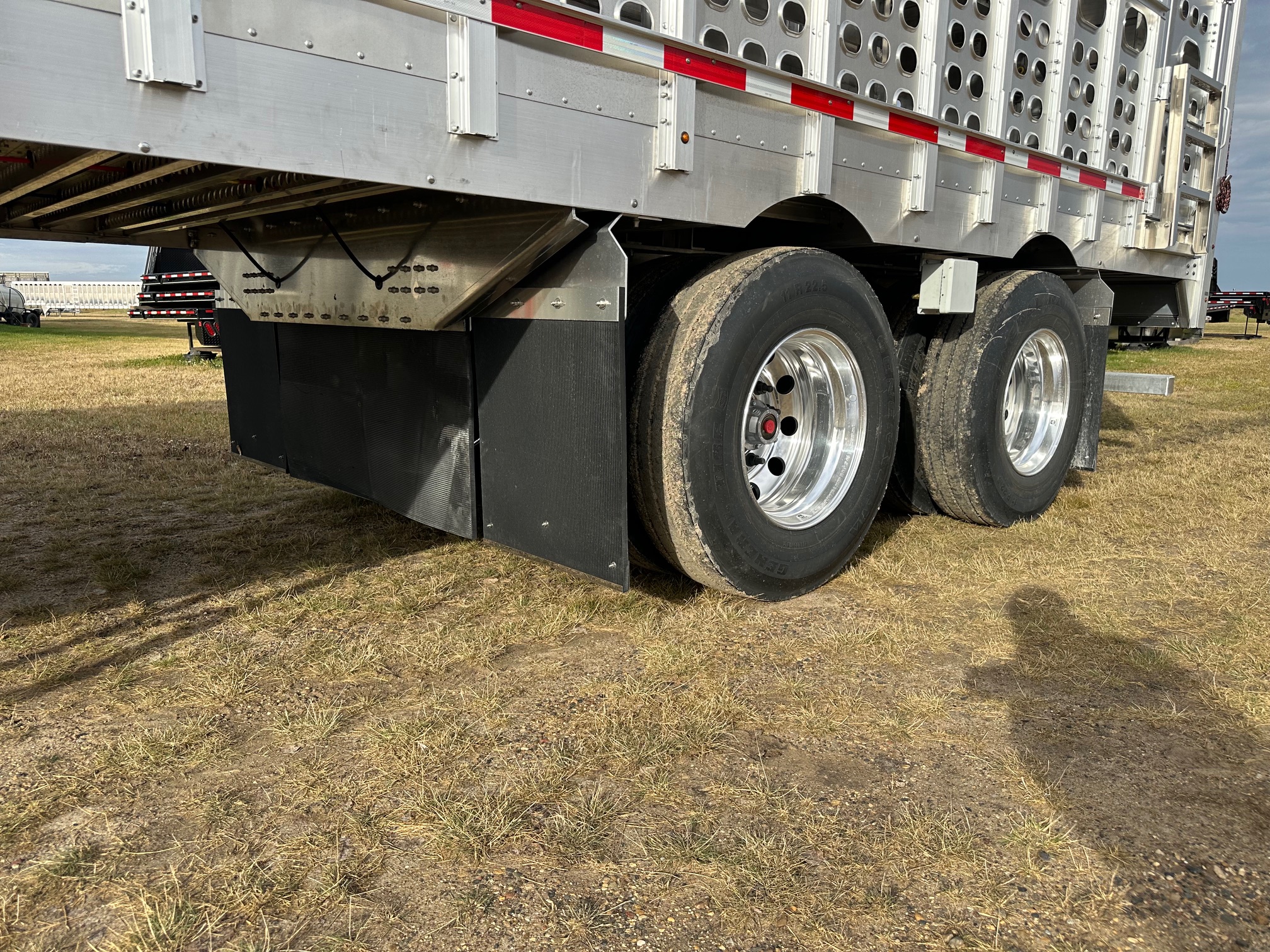

• Full Width 3/4" Mud Flaps Fore and Aft of Fenders
• 36" x 24" Roadside Tool Box

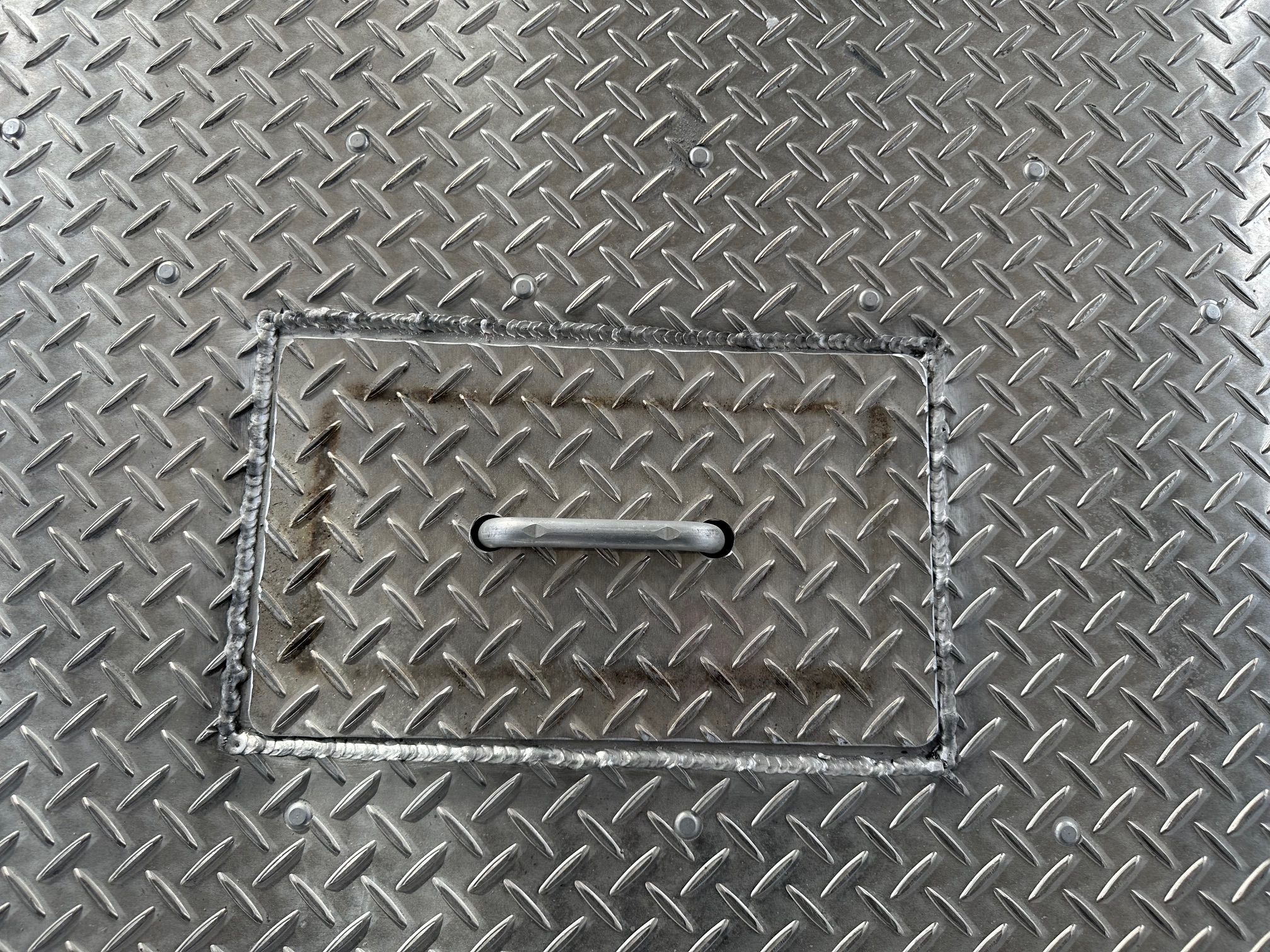

• 24" Lift Out Drain in Both Decks

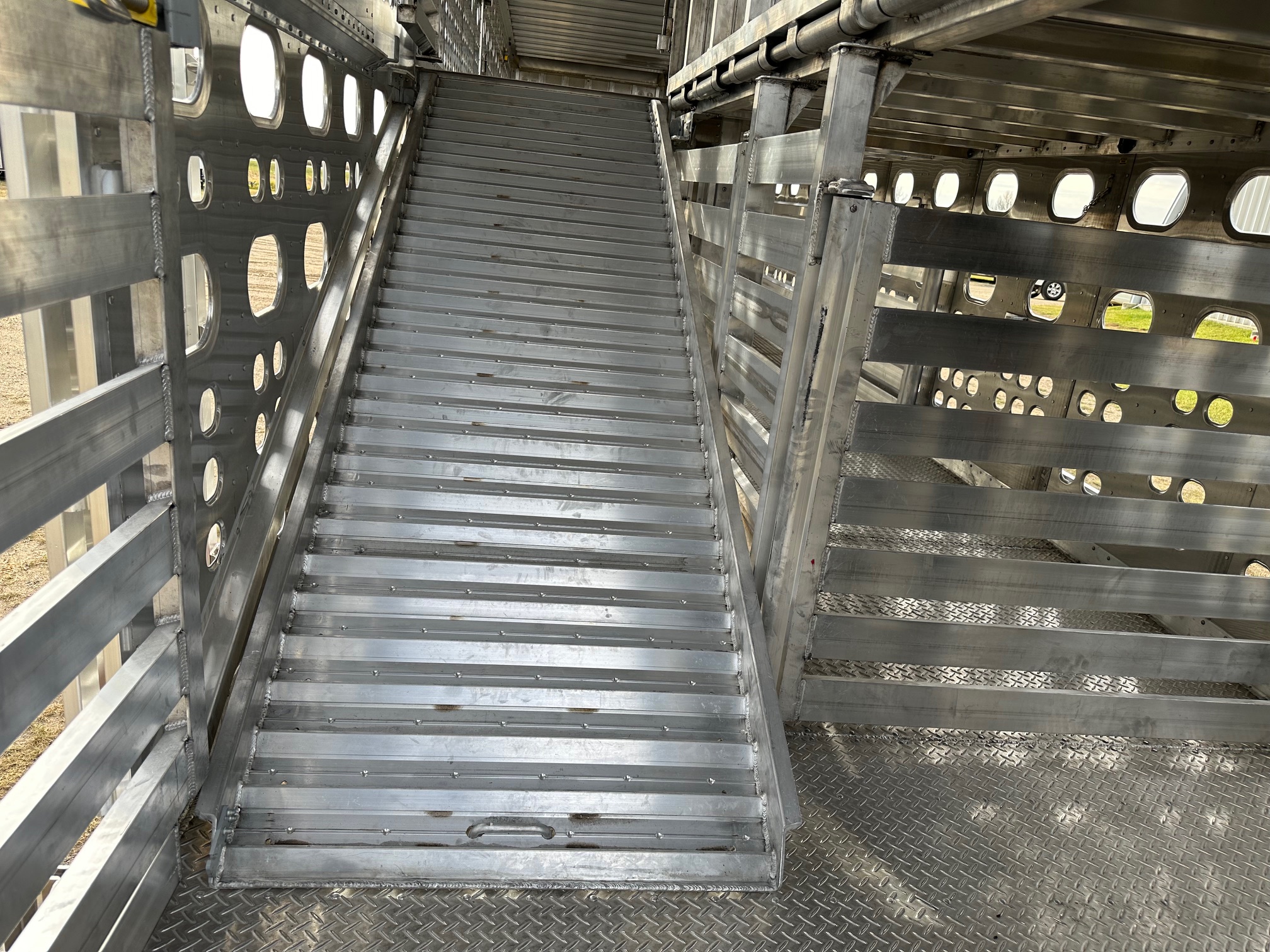

• 133" Pull Out Ramp

Price subject to change due to freight & currency volatility. Please call for current pricing.
