2026 Horizon LZ7 14K 83 in GN Hoist 14 ft / 42 in

2026 Horizon LZ7 14K 83 in GN Hoist 14 ft / 42 in

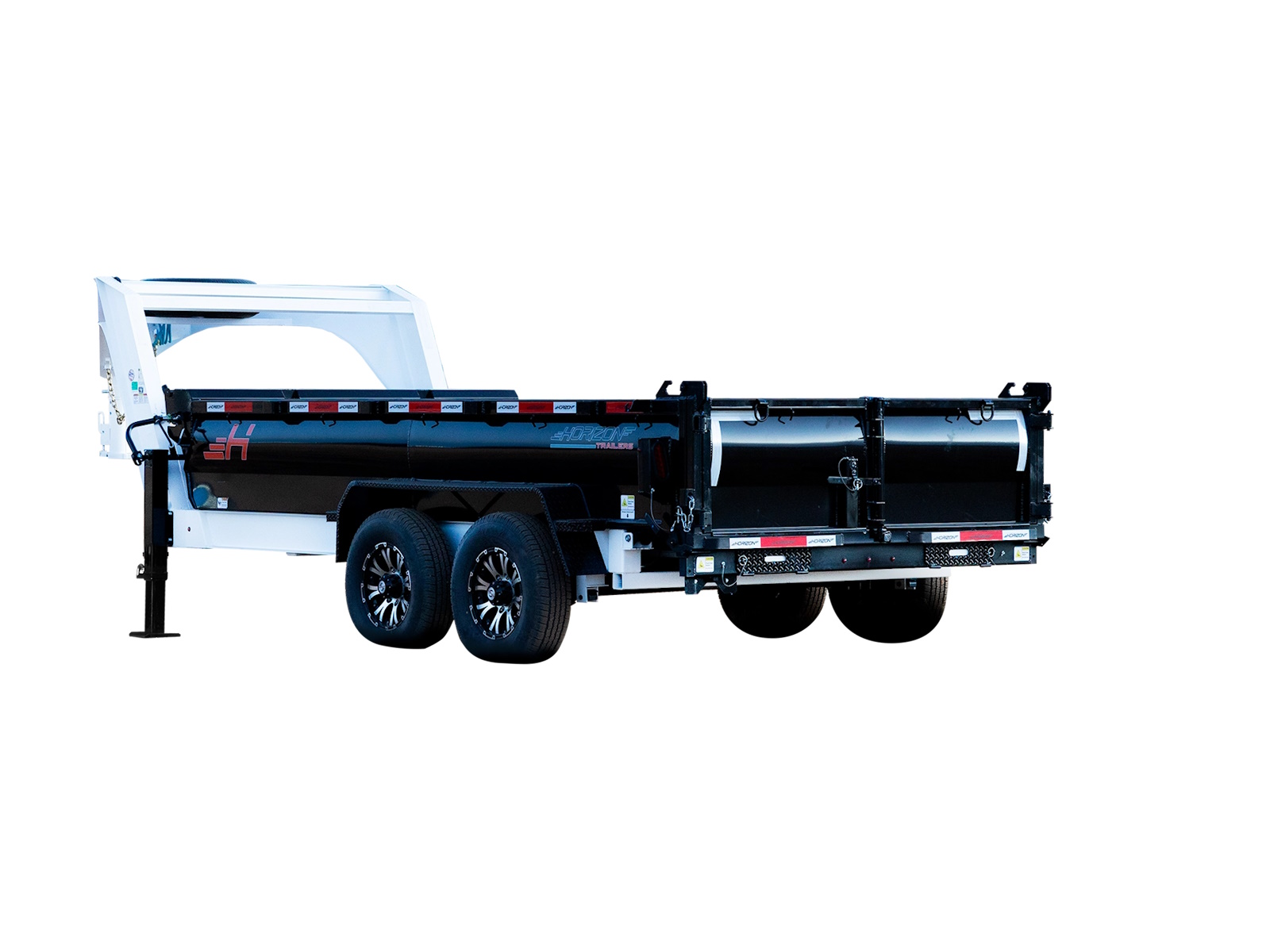

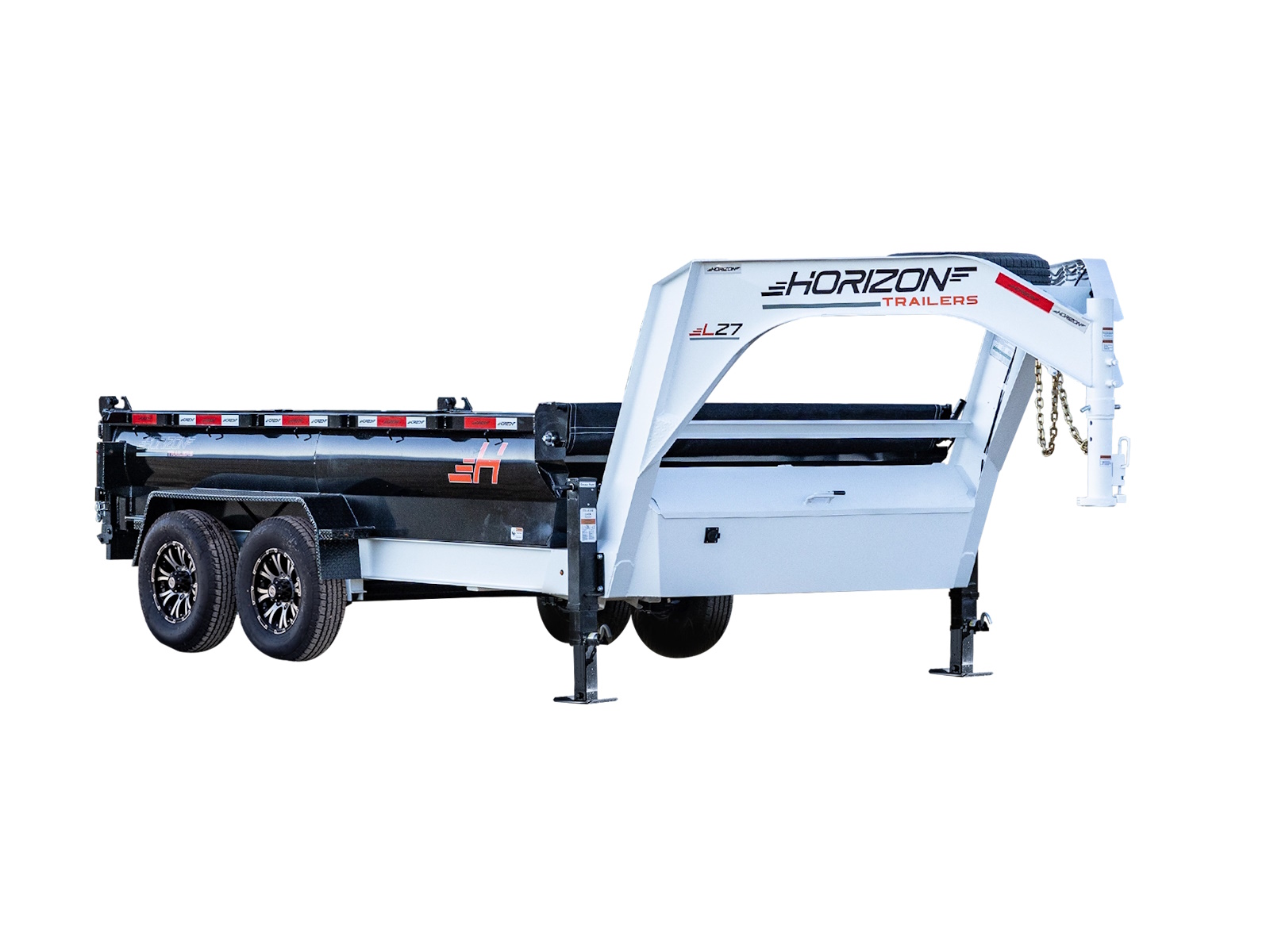

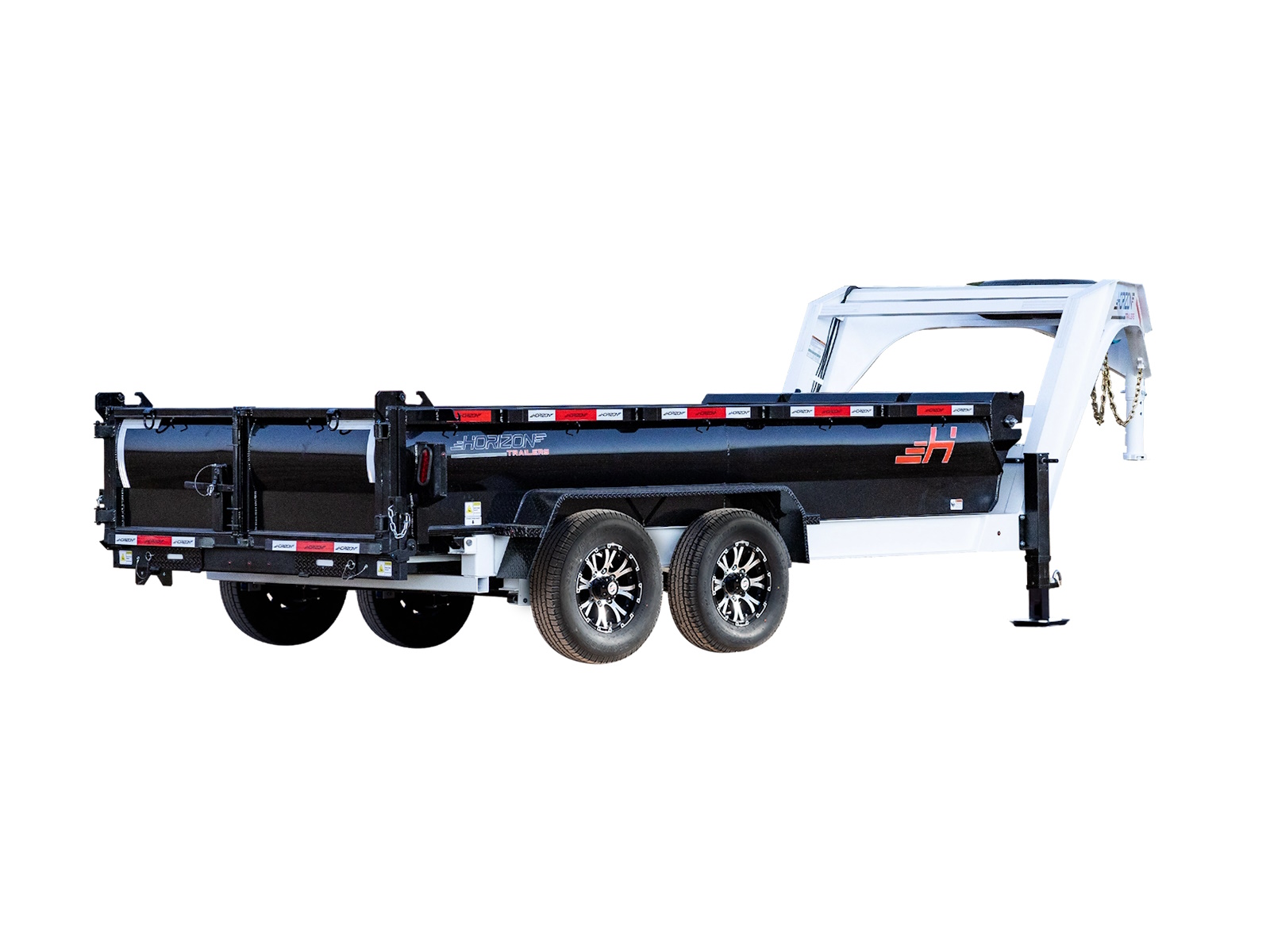

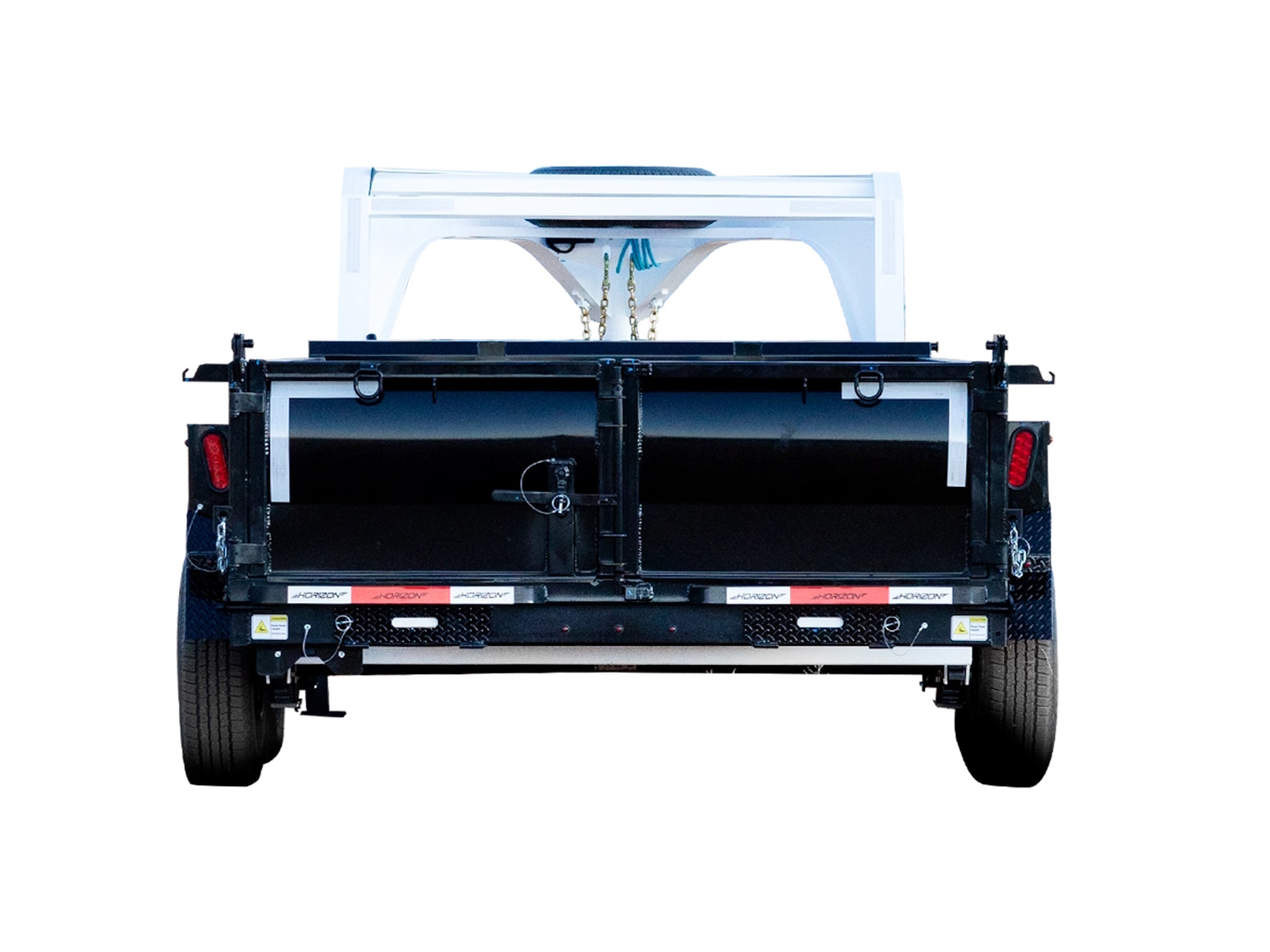

The LZ7 14K 83" Hoist Dump Trailer is engineered for maximum durability and performance. With a 14,000 lbs GVWR, 8" I-Beam frame, Mega Lockable Toolbox, and 2-tone color options, it combines strength with versatility. Available in 12', 14', and 16' lengths, this gooseneck trailer is ready to tackle any job.

The LZ7 Gooseneck is a versatile and efficient dump trailer designed for light-duty tasks with improved stability. Constructed with a sturdy steel frame and a dependable hydraulic lift system, it delivers reliable performance. The gooseneck design ensures optimal weight distribution, offering various length and side height options for adaptability. Equipped with LED lights, a manual tarp kit, and robust components, the LZ7 Gooseneck provides efficiency and durability.

HEAVY-DUTY CONSTRUCTION FOR TOUGH JOBS
BUILT TO PERFORM
The LZ7 14K Hoist Dump Trailer offers unparalleled strength and reliability. Featuring a robust 8" I-Beam frame, dual 7k axles, and a 14,000 lbs GVWR, it's built to handle heavy loads. The integrated Mega Toolbox adds functionality, while powder-coat finishes ensure lasting durability. Choose from 12', 14', or 16' lengths to meet your needs.

DESIGNED FOR EVERY HAUL
VERSATILITY REDEFINED

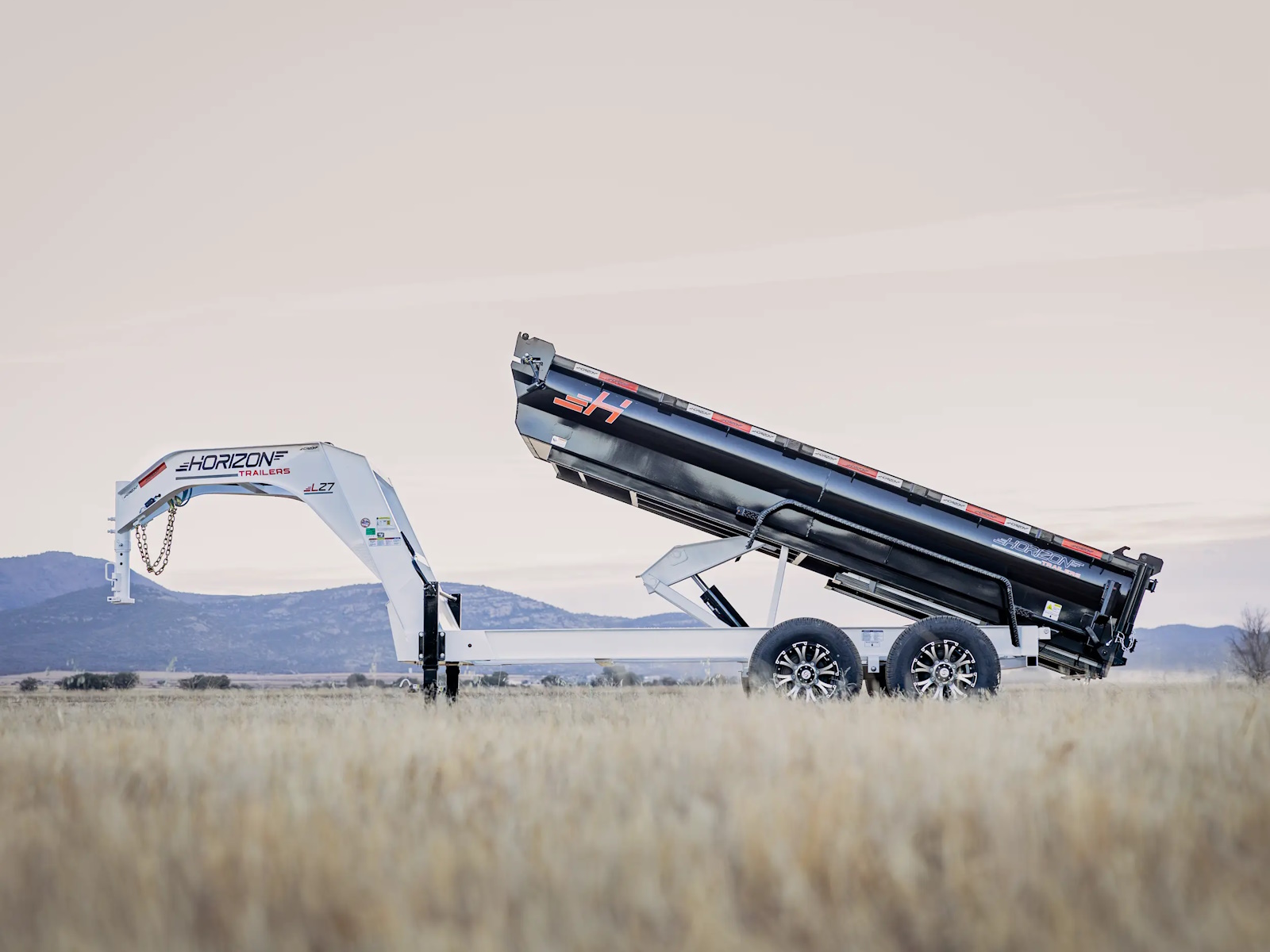

Whether you're tackling construction, landscaping, or farm work, the LZ7 14K Hoist Dump Trailer is your go-to solution. With side heights up to 42", 40°-48° dump angles, and ramp pockets for easy access, it's built for efficiency. Available in vibrant colors like Midnight Black and Flame Orange, it combines functionality with style.

EVERYTHING YOU NEED IN A DUMP TRAILER
UNMATCHED FEATURES
The LZ7 14K boasts premium features like DOT-approved LED lighting, a 14' control cable, and a KTI 12V hydraulic pump. Safety is prioritized with Grade 70 safety chains and manual tarp kits. With its gooseneck design and multiple color options, this trailer is the perfect blend of innovation and practicality.

Features May Include:

Highlights:

• 8" I-Beam (13 lbs/ft)

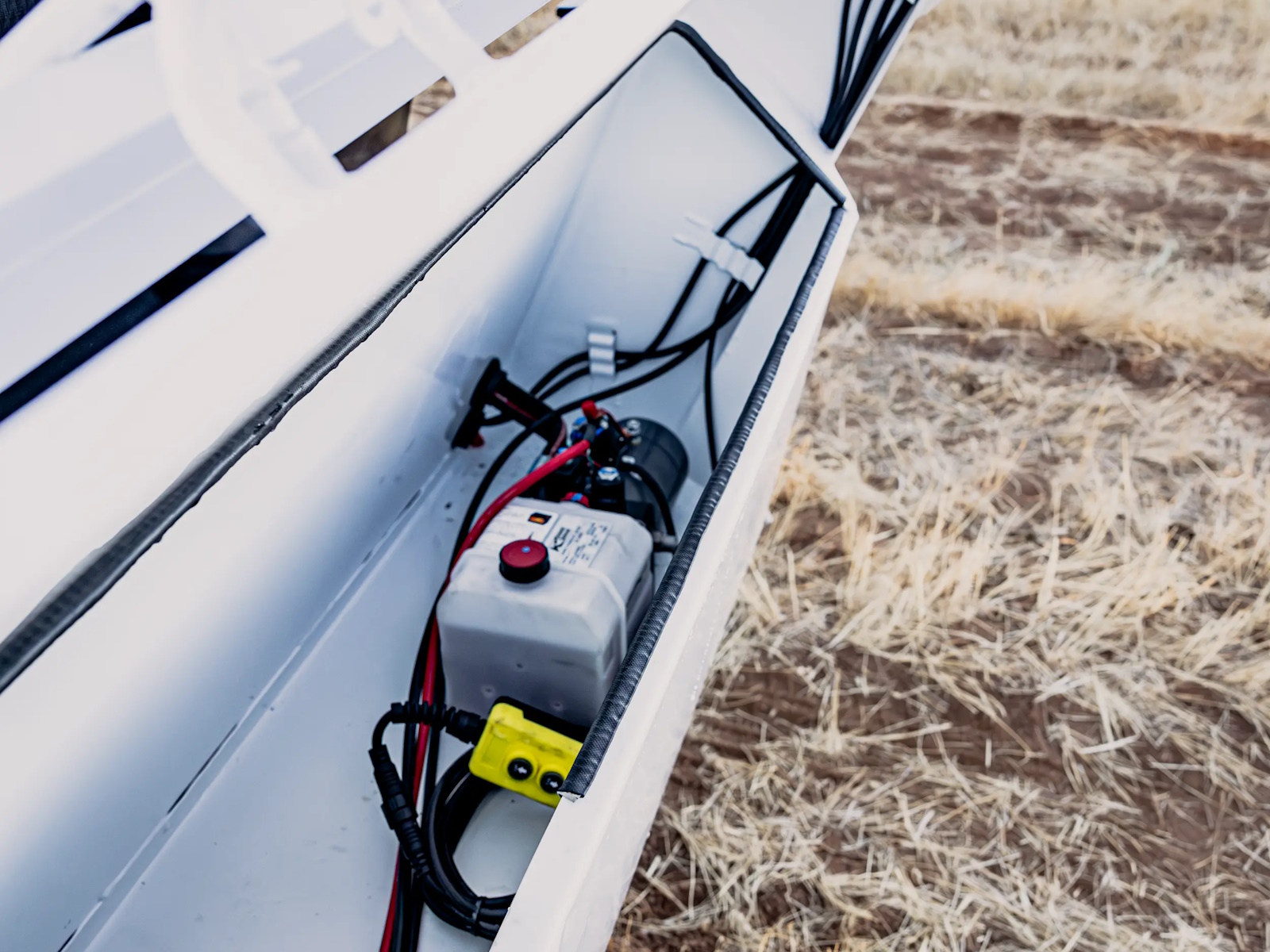

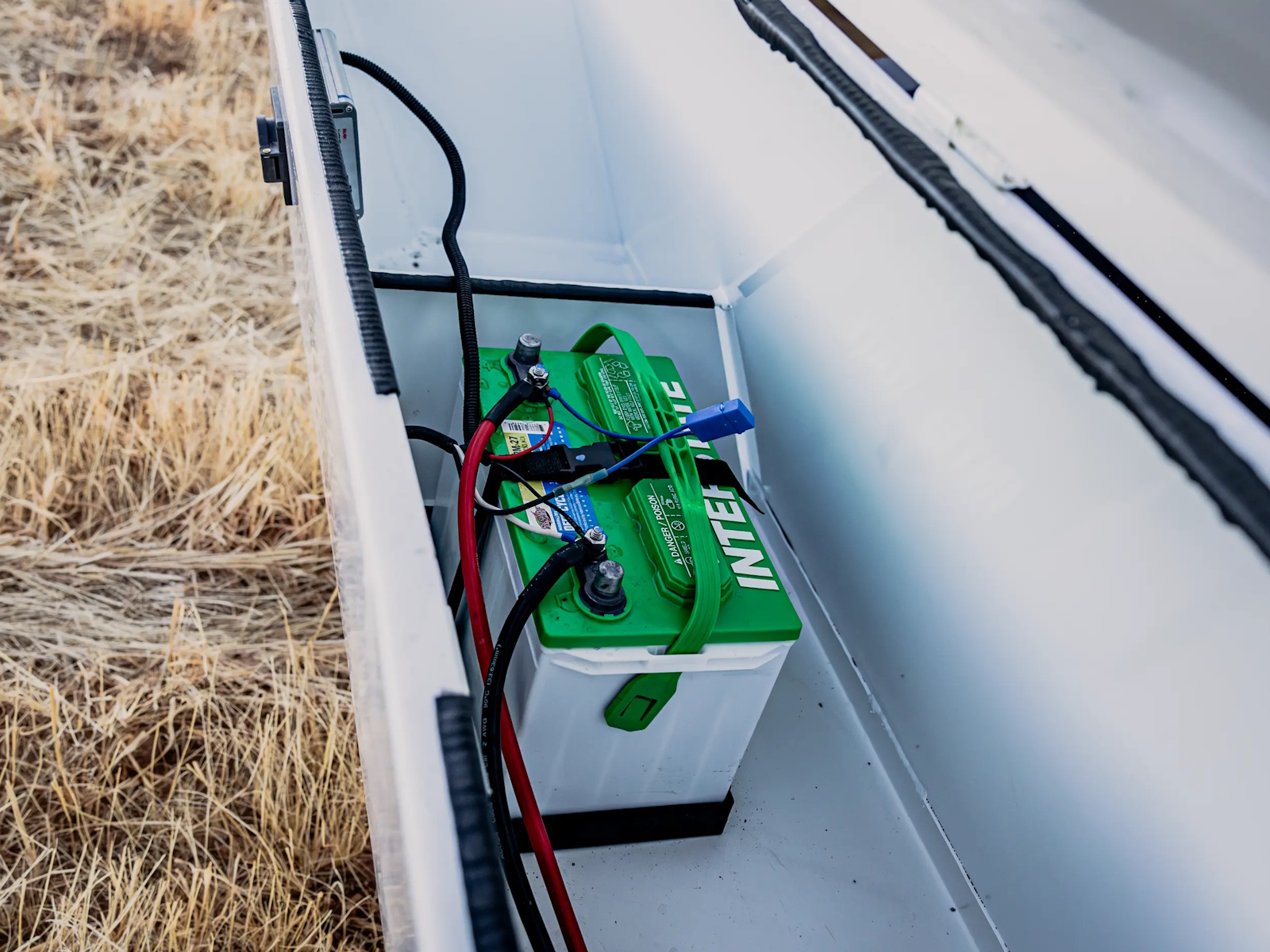

• Mega Lockable Toolbox (Houses Battery and Pump)
• Robust Toolbox Latch
• 4 D-Rings Welded Inside Box
• Ramp Pockets w/ 6' 4" Long Slide In 3" Channel Ramps

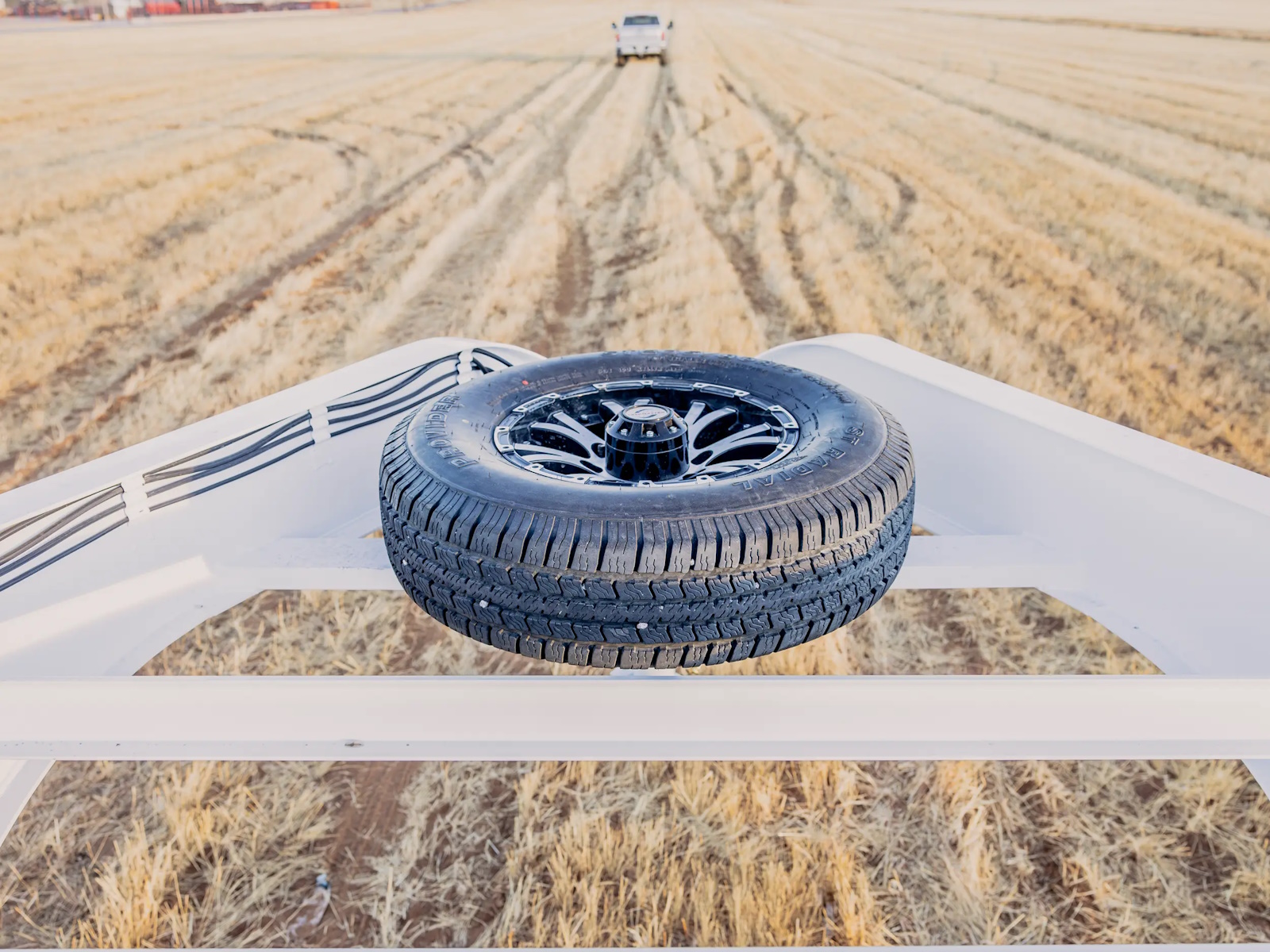

• Weld On Spare Tire Mount
• Extra Marker Lights For Added Visibility
• Manual Tarp Kit

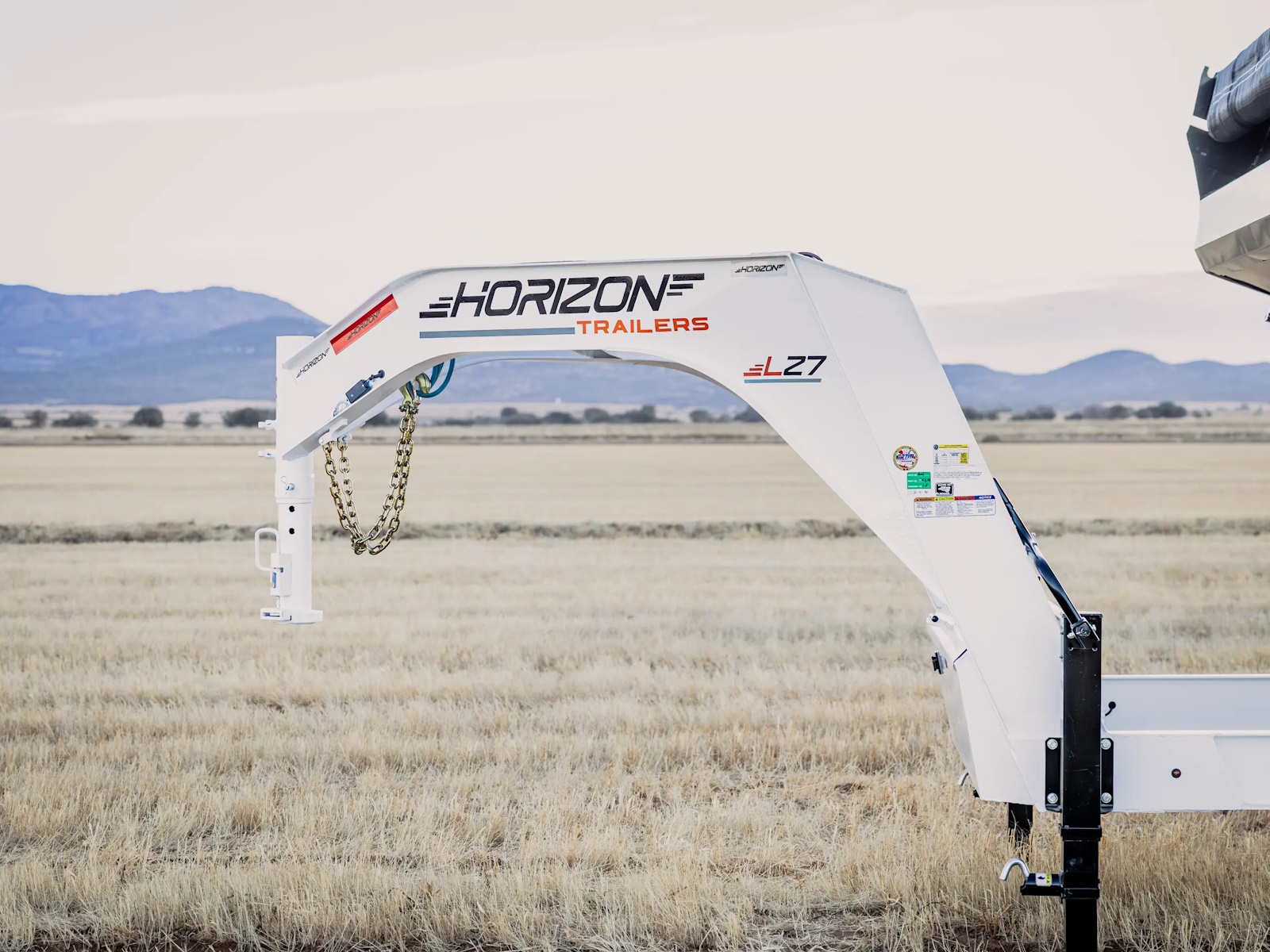

• Neckboss 10" Engineered I-Beam

Optional Features:

Base Model:

• LZ72GN1224H-14K
  LZ7 GN 12' X 83" X 24" 14K Tandem Axle Hoist Dump Trailer
• LZ72GN1424H-14K
  LZ7 GN 14' X 83" X 24" 14K Tandem Axle Hoist Dump Trailer
• LZ72GN1624H-14K
  LZ7 GN 16' X 83" X 24" 14K Tandem Axle Hoist Dump Trailer

Tongue:

• DEFAULT
  1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
• LZ7-106
  12k Hydraulic Jacks

Chassis:

• LZ7-611
  Side Step On Both Sides

Dump:

• DEFAULT
  24" High Sides
• LZ7-513
  30" High Sides (10ga.)
• LZ7-514
  42" High Sides (10ga.)
• 506-013
  8" Extensions Boards
• LZ7-507
  8" Integrated Wood Extension Brackets
• LZ7-417
  Ramp Pockets w/ 6' 4" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
• LZ7-505
  Pair Of Rear Stabilizer Stands
• LZ7-702
  Crank Over Tarp Kit

Lift System:

• DEFAULT
  2 Button Hydraulic - Power Up / Power Down
• 509-005
  Tuff Wireless 2 Button Remote (Hoist or Telescopic)
• 509-017
  Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks)

Running Gear:

• Tire Upgrade Options:
  • DEFAULT
    ST235/80R16 10 Ply Tire (3,520 lbs)
  • 501-002
    4 - ST235/85R16 14 Ply Tires Singles (4,400 lbs)
  • 501-003
    4 - Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs)
  • 501-004
    4 - Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs)
• Spare Tire Options:
  • 501-103
    ST235/80R16 10 Ply Tire Single (3,520 lbs)
  • 501-104
    ST235/85R16 14 Ply Tire Single (4,400 lbs)
  • 501-105
    Aluminum Rim w/ ST235/80R16 10 Ply Tire (3,520 lbs)
  • 501-106
    Aluminum Rim w/ ST235/85R16 14 Ply Tire (4,400 lbs)

Electrical and Lighting:

• 505-001
  10 Watt Solar Panel

Finish:

• LZ7-803
  2 - Tone Colors Chassis / Dump Box
• LZ7-808
  12ft-14ft Zinc Primer Undercoat
• LZ7-806
  16ft Zinc Primer Undercoat
