2026 Interstate 24DTA
Get in Touch
Description

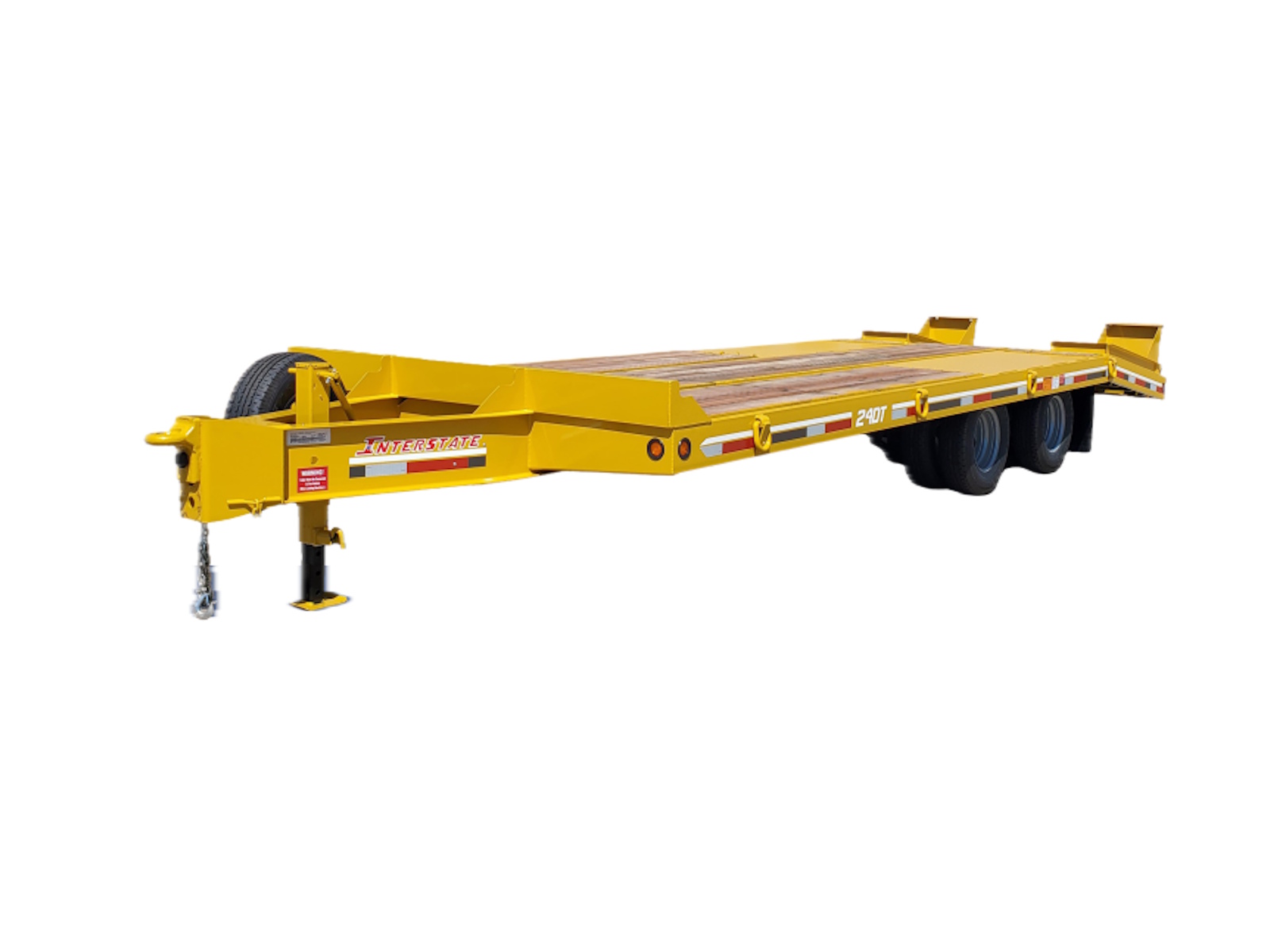

2026 Interstate 24DTA
24,000 lb. capacity tag-along trailer with dual tires and air brakes. Available with gooseneck.
Info
Industry
Trailer
Make
Interstate
Model
24DTA
Trim
Base
Year
2026
MSRP
N/A
Category
Tag-Along Trailer
Subcategory
Tag-Along Trailer
Specs
Max Load
24,000 lbs.
Dry Weight
Trailer: 6,250 lbs.
Length
Overall: 29 ft 0 in | Deck: 24 ft 0 in (19 ft 0 in flat deck + 5 ft 0 in beavertail)
Width
Deck: 8 ft 6 in
Frame
Siderails: C8 in x 11.5 lbs. per ft., grade 50 Hitensile | Mainbeams: W12 in x 16 lbs. per ft., grade 50 Hitensile
Crossmembers
6 in I-beam x 3.9 lbs per ft., 80 KSI tensile strength on 22 in centers

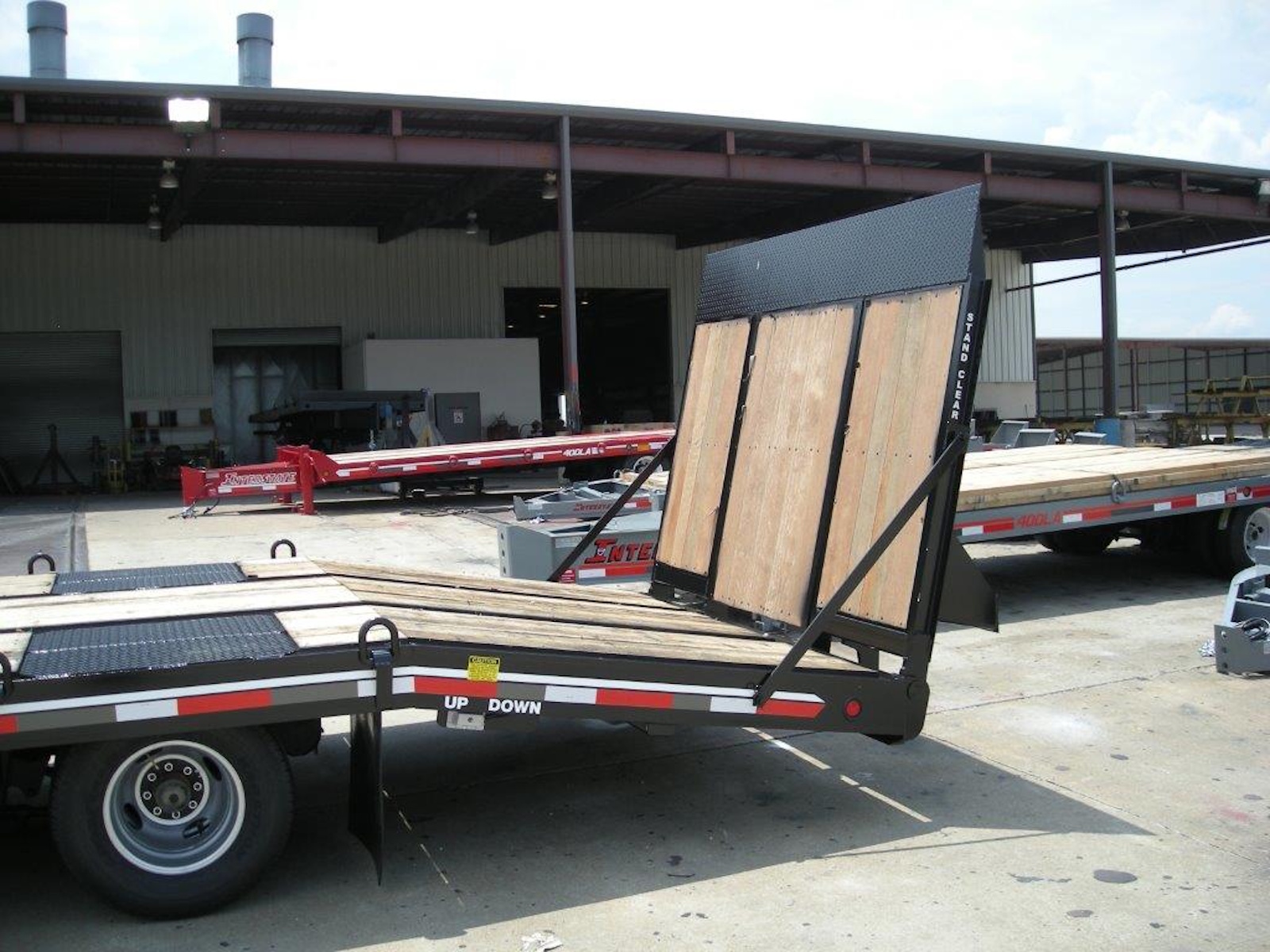

Ramps
60 in x 21.5 in traction with spring assist
Notes
Jack: 12,000 lb. dropleg, side crank | Tie Downs: (8) heavy duty D-rings, 4 per side | Headboard: 8 in channel, full width of trailer | ecking: 2 in nominal oak
Suspension
Hutch 9700 multi-point spring with radius rod axle tracking adjustment, 44,000 lb. capacity.
Axles
(2) 12,000 lb. capacity with oil bath hubs
Brakes
12-1/4 in x 5 in air with "Wabco " anti-lock braking system and spring parking brakes
Tires
(8) 235/80R16 (E)
Wheels
8 hole steel disc
Hitch Size
4 position cast steel pintle eye, 1-5/8 in stock, 2-7/8 in I.D.
Lights
Flush mounted LED in rubber grommets Modular wiring harness with 7-way plug
