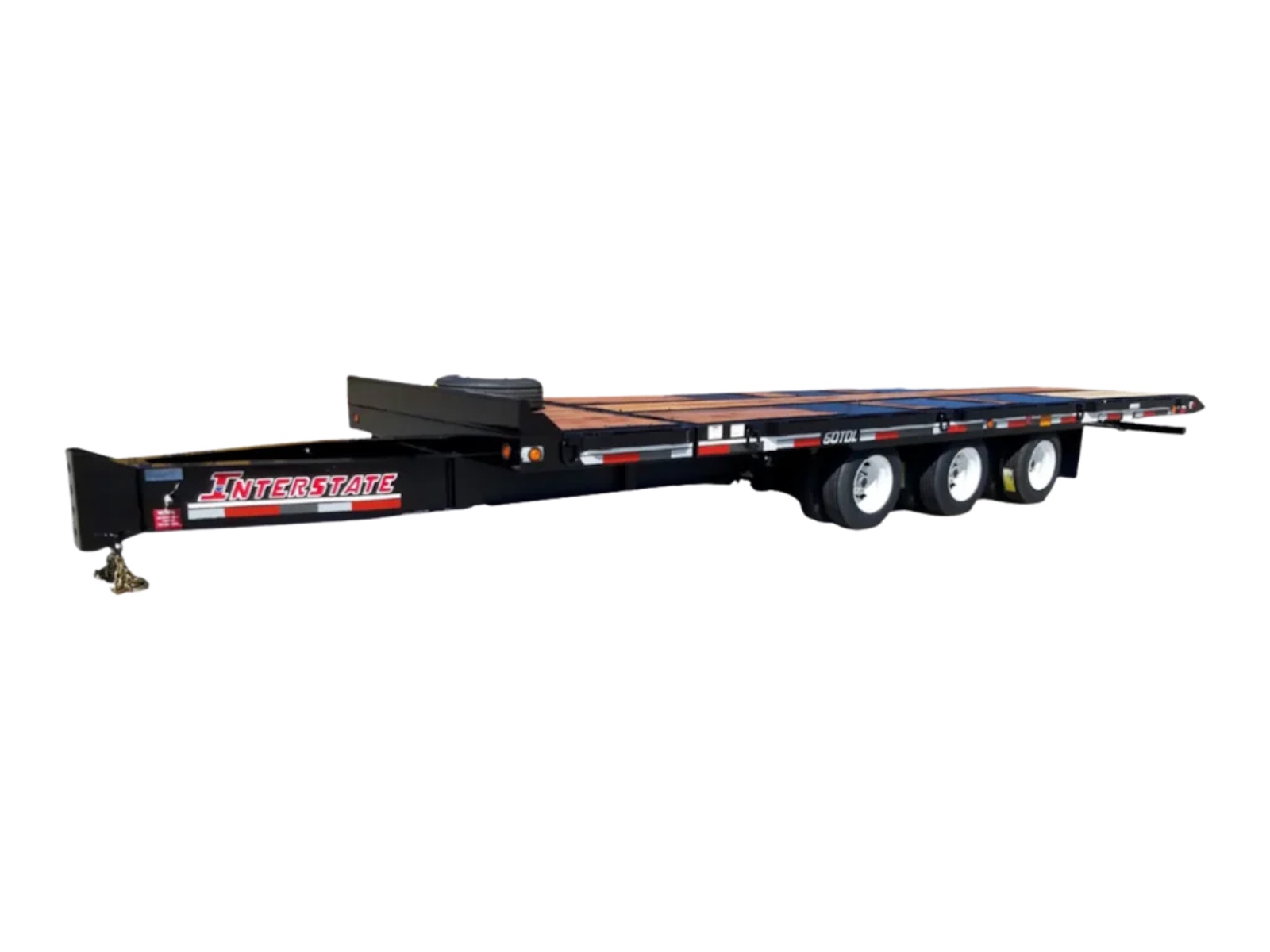

2026 Interstate 60TDL
60,000 lb. capacity tilt bed trailer with low profile dual tires and air brake systems. Dual tilt cylinders.
Info
Industry
Trailer
Make
Interstate
Model
60TDL
Trim
Base
Year
2026
MSRP
N/A
Category
Tiltbed Trailer
Subcategory
Tiltbed Trailer
Specs
Max Load
60,000 lbs.
Dry Weight
Trailer: 13,500 lbs.
Length
Overall: 37 ft 4 in | Deck: 26 ft 0 in tilting platform 51.5 in stationary deck
Width
Deck: 8 ft 6 in
Frame
Main beam tilt platform: (2) W8 x 15 lbs.per ft., grade 50 Hi-tensile | Main beam chasis: (2) W14 in x 26 lbs. per ft., grade 50 Hi-tensile
Crossmembers
tilt platform: S6 in I-beam x 12.5 lbs per ft., grade 50 Hi-tensile strength on 22 in centers
Notes
Jack: 25,000 lb., 2 speed landing leg | Underride guard: Meets “National Highway Traffic Safety Administration ” mandates FMCSS223 & FMVSS-224 | Tie Downs: (8) heavy duty D-rings, 4 per side | Decking: 2 in nominal oak | Siderails: C8 in x 18.75 lbs. per ft., grade 50 Hi-tensile | Headboard: 8 in x 3 in rectangular tube, full width of trailer
Suspension
Hutch 9700 multi-point spring with radius rod axle tracking adjustment, 66,000 lb. capacity.
Axles
(3) 22,500 lb. capacity with oil bath hubs
Brakes
12-1/4 in x 7-1/2 in air with “Wabco” anti-lock braking system and spring parking brake
Tires
(12) 235/75R17.5 (J)
Wheels
8 hole, hub piloted
Hitch Size
4 position cast steel pintle eye, 1-5/8 in stock, 3 in I.D.
Lights
Flush mounted LED in rubber grommets Modular wiring harness with 7-way plug
