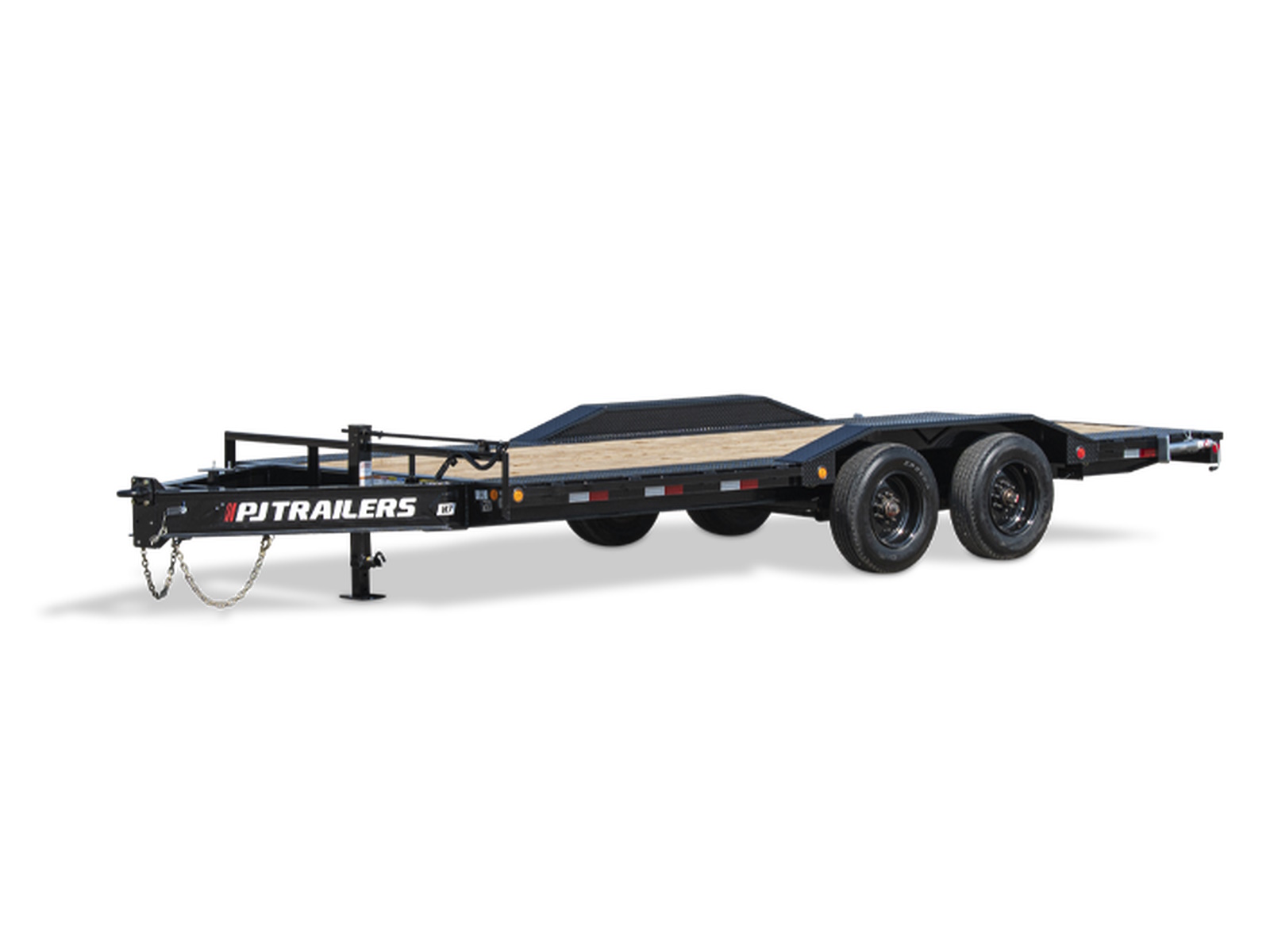

2026 PJ Trailers H7 (24')  - clone

2026 PJ Trailers H7 (24')

10" Pro-Beam™ Super-Wide Equipment (H7)

When you’re hauling extra wide loads, you need an extra wide trailer like the 10" Pro-Beam™ Super-Wide Equipment Trailer (H7).

However, those big, hefty, and bulky loads are typically difficult and challenging to unload and load, and that’s where the H7 changes the game. Featuring torsion drop axles that effectively deliver a lower deck height for improved loading, we combine this advanced suspension technology with a 10’’ frame beam (and 102’’ super-wide deck in front and behind the fenders) to create a loading surface that’s perfect for heavy equipment and vehicles—without compromise.

Features may include:

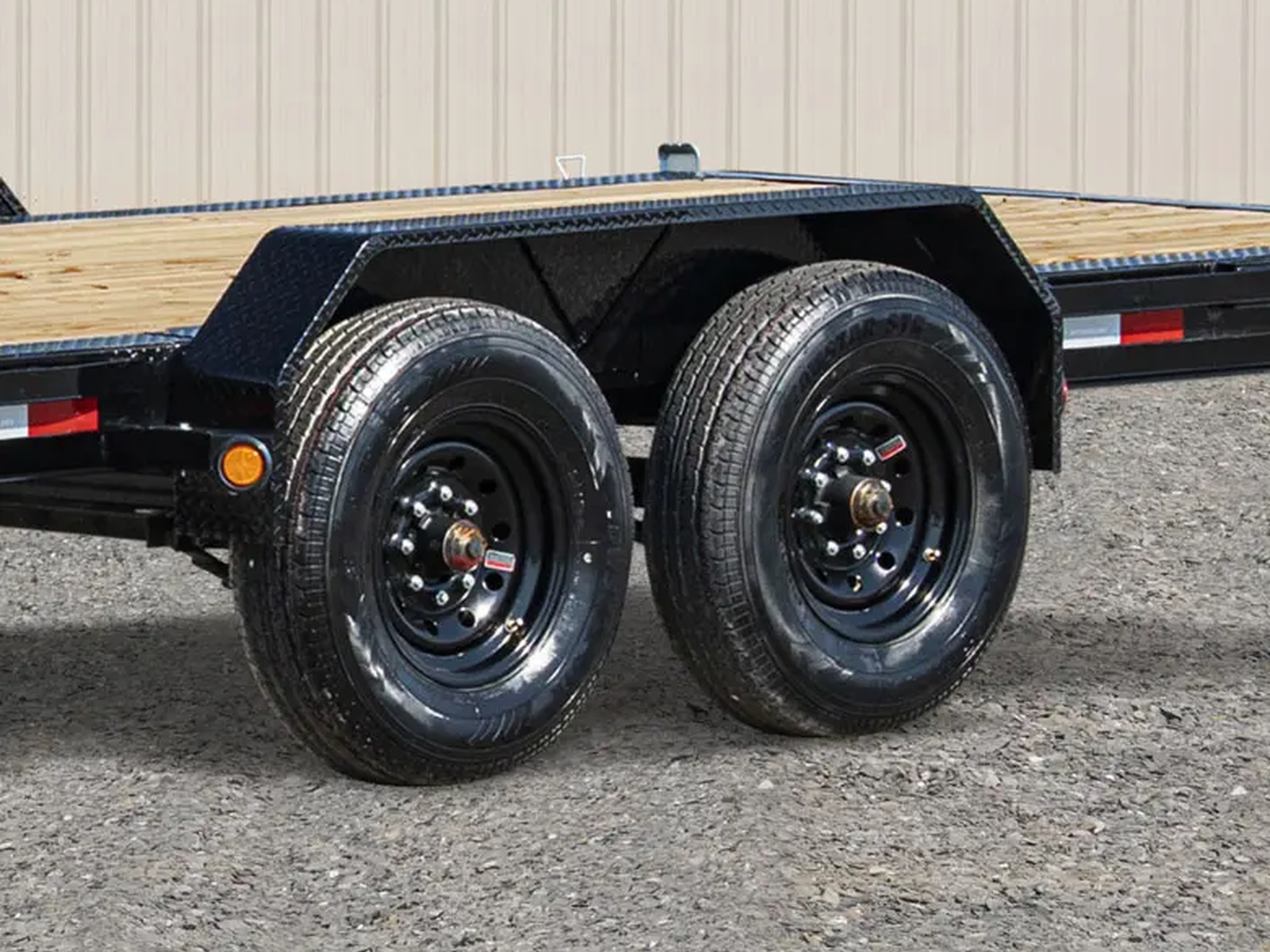

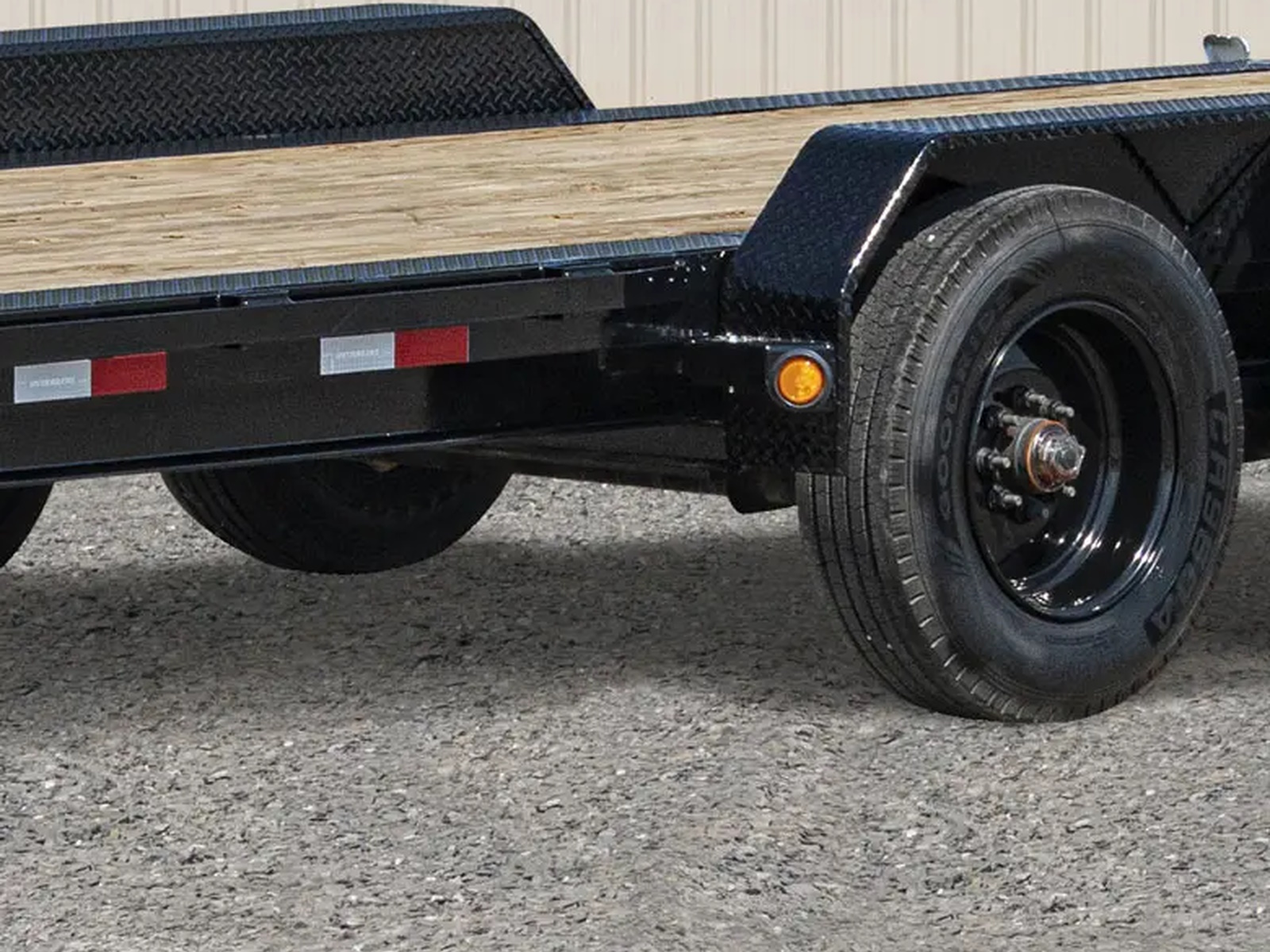

• Axles [S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Torsion
• Suspension Torsion Suspension
• Tongue 10" I-beam Tongue
• Coupler [P] 3" Pintle Eye - Face-Mount (36,000 lb.)
• Safety Chains 3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
• Jack Drop Leg Jack (10,000lb)
• Frame 10" x 19 lb. I-Beam Main Frame
• Cross-Members 3” Channel Crossmembers 16” oc
• Bump Rail Front Bump Rail
• Floor 2" Treated Pine Lumber Deck
• Fenders HD Drive Over 1/4" Diamond Plate Fenders
• Ramps 5' Slide-In Ramps w/ Holders
• Stake Pockets 24" Stake Pocket Spacing
• Lights
• Wiring All-Weather Wiring Harness (7-way RV)
• Tires ST235/75/R17.5 Radial Tires 18 ply (6,005 lbs.)
• Paint Color [K] Primer + Black Powder Coat
• Rubrail Rubrail & Stake Pockets
• Tie-Downs
• (6) D-rings
• Breakaway System Electric Breakaway Kit w/ Charger
• Battery
• Stabilizers Rear Stabilizer Stands
• Storage
• Cargo Winch
• Pipe Chain Spools Pipe Spools
• Tail [S] Straight Deck w/ 5' Rear Slide-in Ramps
