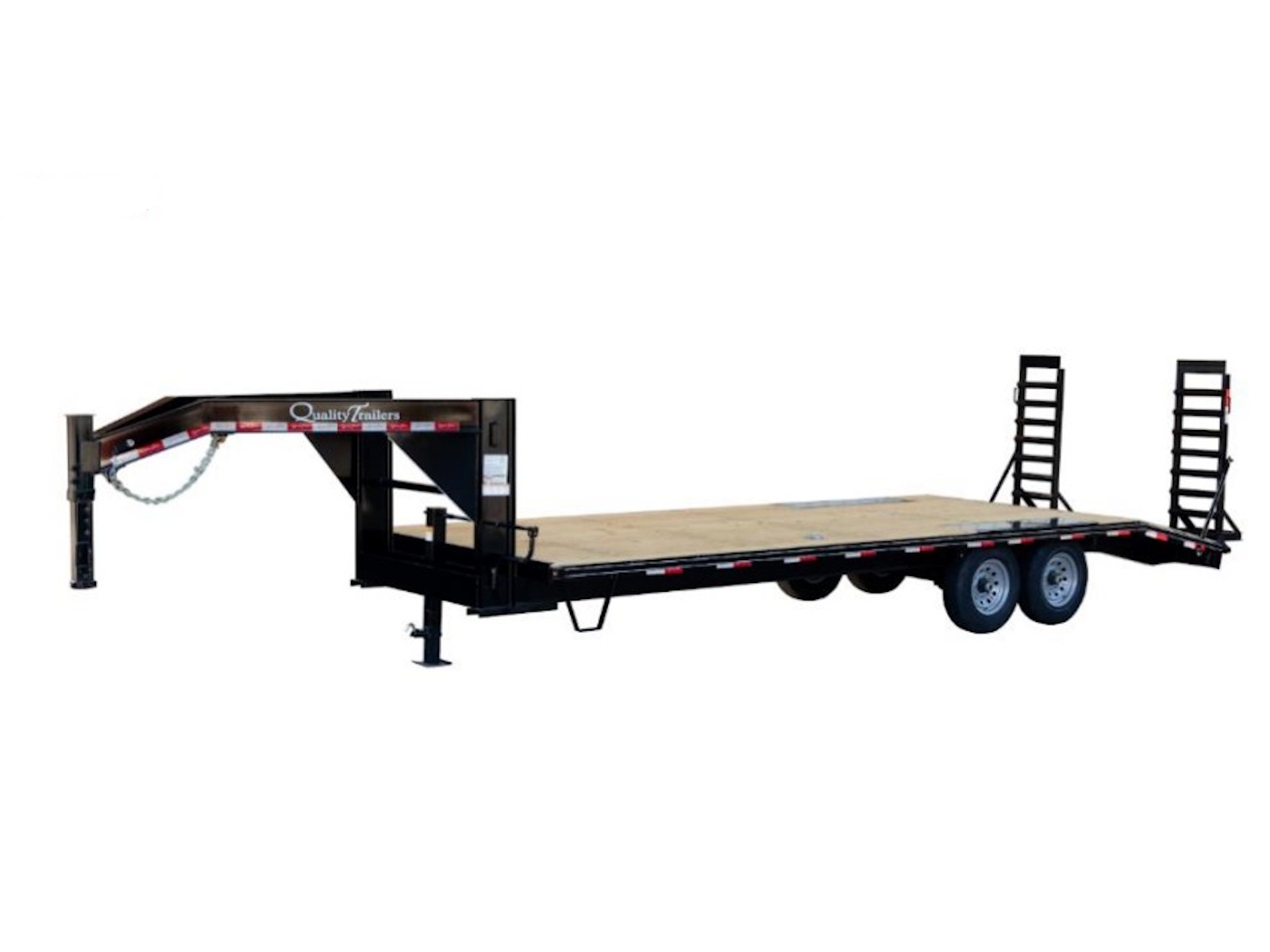

2027 Quality Trailers Deckover Gooseneck 10000 General Duty

2027 Quality Trailers Deckover Gooseneck 10000 General Duty

Standard I-beam frame with 25″ cross member spacing, radial tires, rubber mounted sealed beam lighting  in enclosed light boxes with conventional wiring with gel filled connectors.

GVWR 10000 lb. – Capacity 8500 lb. with 1500 lb. Hitchload

Features May Include:

• Treated wood deck
• 96″ wood deck 101.5″ to outside of rubrails
• 5200 lb. braking axles with 4 wheel brakes
• Double eye spring suspension
• 225/75 R15 load range D 8 ply rating Castle Rock Radial tires
• 8” I-beam frame (W8x10)
• 4″ flat bar side rails
• 3″ channel cross members – 25″ spacing
• 10″ I-beam uprights, 8″ I-beam neck with tool tray
• 5 ft. swing-up ramps with support foot
• 2 5/16″ adjustable gooseneck coupler
• 12000 lb. drop-foot jack
• Metal plate over wheels for lowest possible loaded deck height (30″)
• Stake pockets and rubrail
• Self charging break away kit, safety chains, skip DOT reflective tape and all rubber mounted sealed beam lighting with conventional wiring with gel filled connectors
• Primed, 2 coats of acrylic enamel, pin stripe
