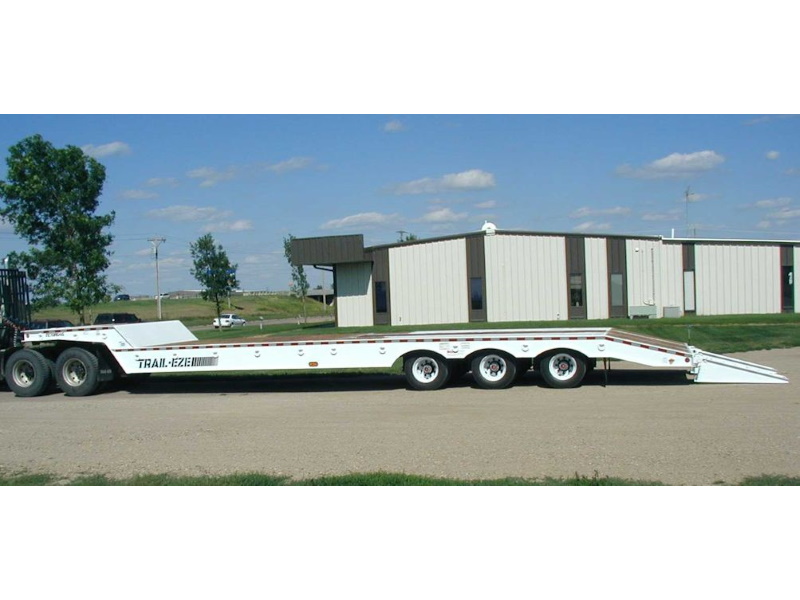

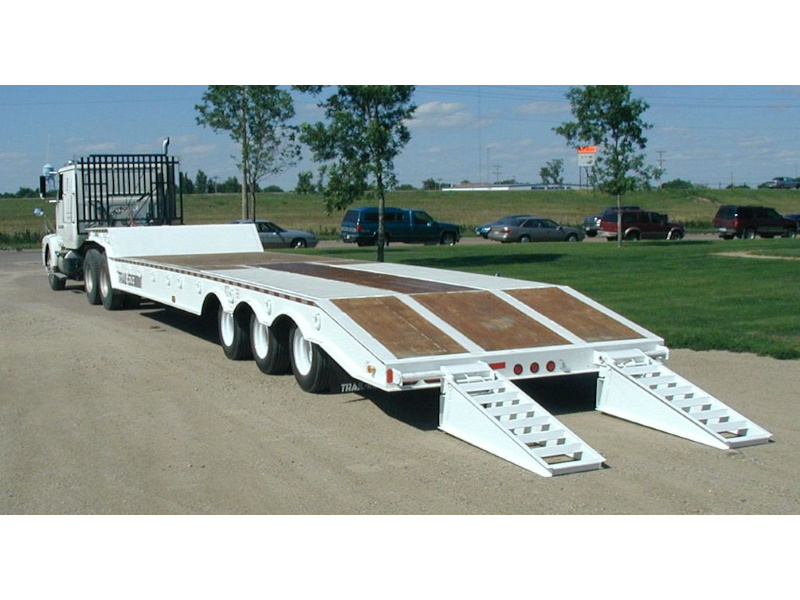

2022 Trail-EZE TE100RG

2022 Trail-EZE TE100RG

Features may include:

• FRAME : All high tensile steel. Custom manufactured beams designed for stress loads at a minimum of two times rated capacity.
• DECK : 1 1/2" Oak decking attached to every crossmember with two Torx head screws. Load bearing wheel bolsters between each axle.
• AXLES : TE70RG - (2) 25,000 Lb / TE100RG - (3) 25,000 Lb
• BRAKES : 16 1/2" x 7" Air with automatic slack adjusters and ABS
• WHEELS : 8.25 x 22.5 Steel disc
• TIRES : 255/70R x 22.5 Low profile radials
• PARK STAND : Pin drop
• SUSPENSION : Spring type
• TIE DOWNS : (10) D-rings / (5) per side of deck bed (optional additional D-rings available). Chain slots in each bolster.
• ELECTRICAL : ICC D.O.T. Standard light and reflector kit
• PAINT : Trailer sandblasted, primed and painted
• WARRANTY : Limited 5 Year Pro-Rated Major Structural Warranty
