2021 Winston Trailers 25 and 30 Ton ProSeries Dual Tri-Axle

2021 Winston Trailers 25 and 30 Ton ProSeries Dual Tri-Axle

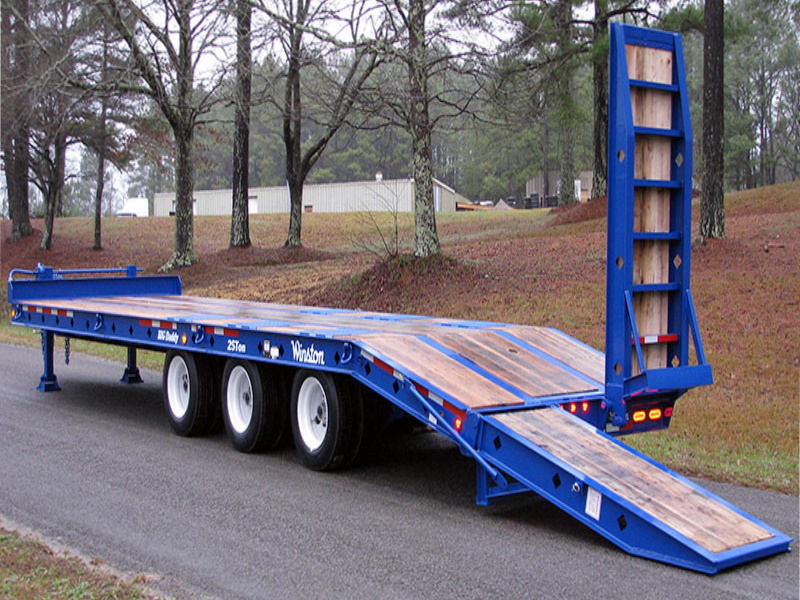

Our Big Daddy 25 and 30 Ton Dual Tri-Axle trailers are built to make most lowboys jealous. These are the largest tagalong trailers available and we have plenty of experience building them. We recommend our heavy duty, 3 x 7.5' hidden hydraulic, ramps to move large equipment with ease. Large main frames and 4 I-Beam construction with dual 2 speed bolt on jacks is a monster of a tag trailer.

Winston Dual Tri-axle Equipment Trailers are available in 25 and 30 Ton Models. These Heavy Duty LowProfile Tagalong Trailers are designed to haul all types or construction equipment. Low Profile Design with high quality components with many features.

Construction

These Heavy Duty Trailers are "Built to Make Most Lowboys Jealous". Winston Trailers uses 4 I-beam construction (2 main frame I-beams, plus 2 siderail I-beams joined together with upper and lower cross members and bracing).

CNC Pierced Main Frame

One piece 14' Hi-Tensile I-Beams are CNC Plasma pierced for precise clean cuts with extreme consistency.

Siderails

Winston uses Hi-Tensile I Beam Siderails with CNC Plasma Diamond Cut outs for extra tie-downs in conjunction with I D-Rings providing securement of equipment.

Reinforcement

Cross members are inserted through the pierced frames, with belly braces and side bracing provide the unitized frame. Add suspension manufactures recommended hanger bracing produces a frame with ridged stability.

Diamond Cut Outs

Positive Cargo Securement against movement of an article in any direction. *49 CFR 393.102

1' Bent D-Rings

55B angle relieves some stress load from the clip and ring. Ultimate Breaking Strength 46,760 lbs. Safe Working Load: 15,586 lbs.

Full 102 'Wide

Wide track equipment can cover stake-pockets making them difficult to tie to.

Diamonds & D-Rings

On a standard 20 Ton, 6 D-rings + 26 Diamond Cut Outs = 32 Total Tie down Points.

Features may include:

• 5 position Adjustable Pintle Hitch
• 8 Lug Hub Piloted Bud Type Wheels

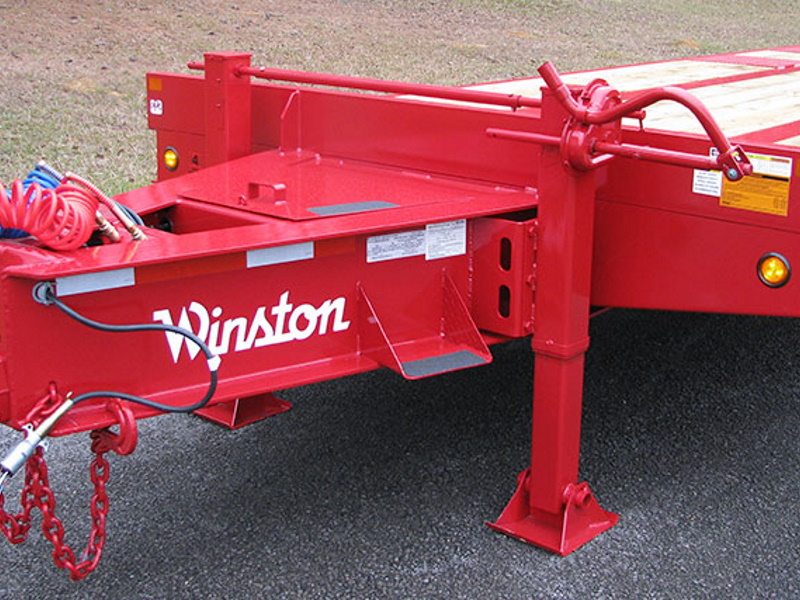

• Dual 2 Speed Bolt on Jacks at 50,000 Lb Rating
• Wabco 2S/1M ABS Air Brakes
• 4 I-Beam Construction
• Emergency/Parking Brakes on Both Axles
• Lockable Tool Box in Tongue
• Double Hinged HD Ramps with Large Sand Pads
• Step On Driver Side

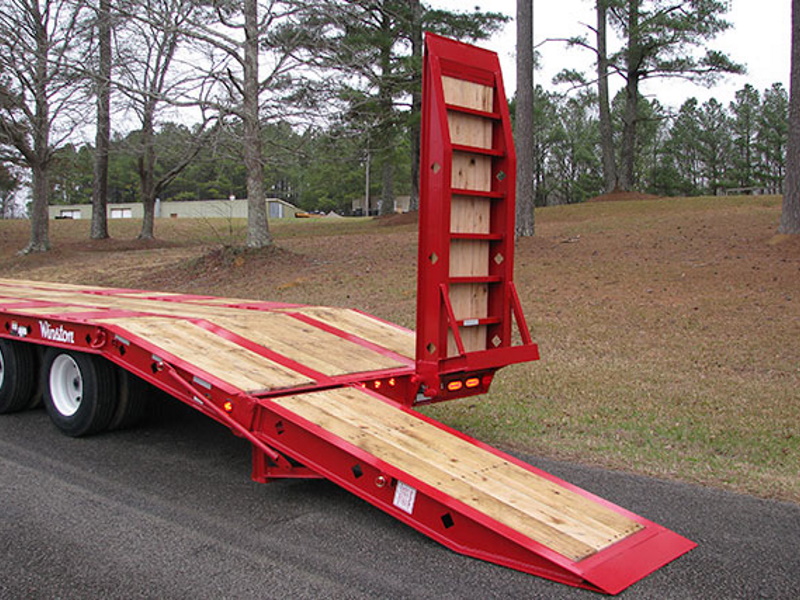

• Bi-Directional Spring Assist Ramps
• Oak Floor Staggered Where Joined
• Diamond and D-Ring Tie-downs
• H9700 Adjustable Suspension
• Sealed Modular Wiring Harness
• 22,500 Lb Axles Oil Bath Axles
• Lifetime LED Lighting
• Premium Stemco Oil Seals
• PPG Epoxy Primer
• Outboard Drums for Easy Brake Inspection
• PPG Modified Alkyd Enamel
